Performance and features:

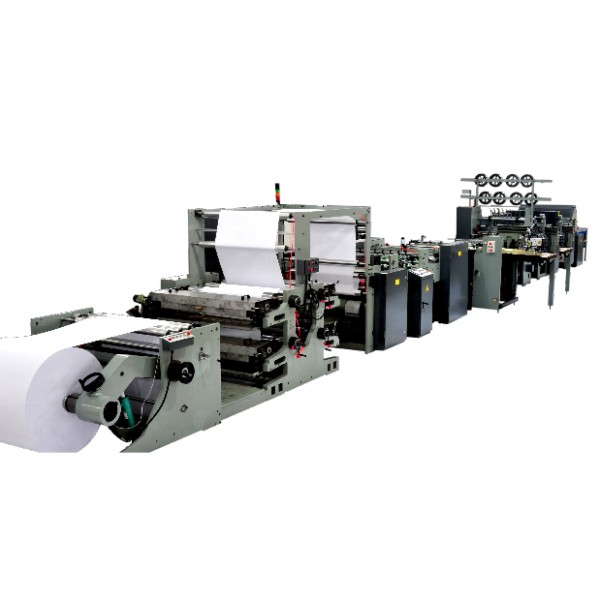

The machine adopts microcomputer control, photoelectric tracking, gas-liquid interaction, human-machine interface touch screen operation, and other high-tech ink flexographic printing, flexographic printing ink environmentally friendly and science. The production line is linked web unwinding, the high-speed flexographic printing, slitting, the number of pages, with an additional sheet, with cover, stitching, folding, flat back, cross-cutting, slitting, closing of the other twelve kind of process organically integrated, thin nails the industry ideal of the mass production line. The machine with the LD-1020 is to increase the feeder different places within the configuration page.
The main technical parameters
|
product model web width max. printing speed repeat range cutting length counting & collecting max. reel paper diameter sheet weight notebook width cover weight appendix weight max. output frequency sheet stitching thickness total power overall dimensions (LxWxH) machine weight
|
GB-1020FD 580-1020mm 240m/min 300-670mm 300-670mm 5-50sheets 1200mm 45-120g 130-225mm 80-300g 40-150g 45Times 8mm 30KW 20400 x 3250 x 2500mm3 17.5T |
