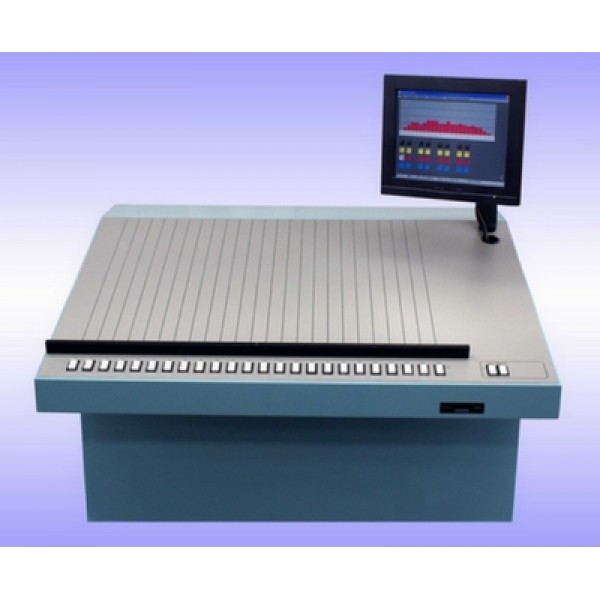

KST-EPG Keycolor Romote Ink Control System is applied in the commercial web offset press .The system contains one or more consoles controlled by computer, these consoles connect to the fountains installed in the printing. Through controlling the actuators installed in the fountain to remote control the ink key.
Keycolor Remote Ink Control System have been selected and installed in multiple plants by Man Roland, KBA, GOSS, Komori, and so on, and even supplied as original equipment for 7 press manufacturers including Tensor, Global Web Press, Web Press Corp etc.
Faster Makeready-Multiple Operators set color simultaneously
＊ Keys controlled from centralized ink desks
＊ Rapid fountain select and key adjustment
＊ Familiar windows style operator screen, easy to learn and operate
Autoset Presetting System
＊Accept files from CTP, image setter, or plate scanner,CIP3/4,or tiff format.
＊ Calculates key zone coverage
＊ All ink fountains set simultaneously
Keycolor Autopage
＊ Autopage is customized to reflect your specific press layout, The number of units, tower or inline, fountains per unit, and location of folders are all represented graphically on the setup display.
＊ Once a job is configured Autopage automatically calculates and displays the location of each page on the press.
＊ Autopage handles Broadpage, Tabloid, and Quarter Fold formats as well as 1/2 and 3/4 webs and can be configured for direct print units.
Preset Analysis
＊ Easily monitor preset accuracy job by job
＊ Track changes over time
＊ Identify mechanical issues
Technical Specifications：
Type model: KST-EPG Keycolor
Operational stroke : 0.5mm
Power supply : AC190V~230V
Power: 1500W
Operation temperature: 10℃—50℃
