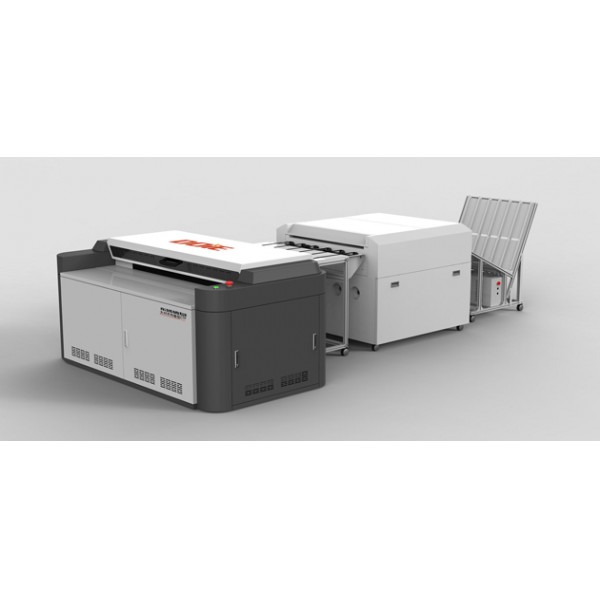

DOIE Thermal-CTP uses the most advanced and stable V model guide rail fixed position technology, using automatic loading way and 830nm laser diode, made the high energy field value of thermal material development, high development quality, after baking , the thermal plate could prints about million times.
DOIE Thermal-CTP is full digital controlled technology, not only is a mature commercial products and the source of profits, but also to the prepress printing integration technology development which have the immeasurable influence and realistic significance.
Specifications
|
Model |
X-0322T |
X-0482T |
X-0642T |
|
Light Channels |
32 |
48 |
64 |
|
Output Speed（P/h） |
17 |
23 |
29 |
|
P size：1030mm×800mm |
|||
|
Light Source |
830 nm Laser Diode |
||
|
Output Resolution (dpi) |
2400 |
||
|
Dot Reproduction |
1%～99% |
||
|
Register Accuracy (mm) |
＜0.01 |
||
|
Plate Size (mm) |
Max. 1160×940；Min. 450×320 |
||
|
Suitable Plates |
Various thermal ctp plates |
||
|
Plate Thickness (mm) |
0.15~0.30 |
||
|
Plate Loading and Unloading |
Loading：Automation（Standard Set） Unloading：Automation Vacuum Fixation |
||
|
Plate Position Accuracy (mm) |
0.2 |
||
|
Plate Balance |
Automatic Balance |
||
|
Data Interface |
USB，1000Mbit/s |
||
|
Ambient |
Temperature 25℃±3℃ Humidity 20~80%（Non-condensing） |
||
|
Machine Dimension (mm) |
L2200×W1100×H1050 |
||
|
Net Weight (kg) |
1500 |
||
|
Power Supply |
≤6KW/220V±5%，50/60Hz |
||
