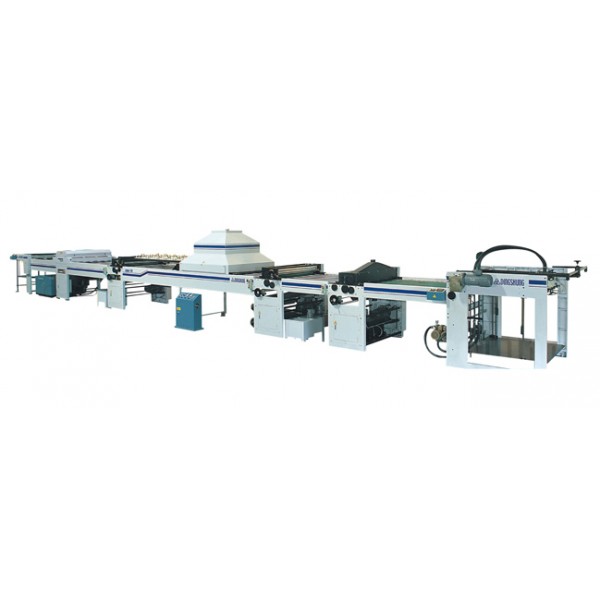

COLLAB UV Varnishing Machine

COLLAB UV Varnishing Machine

Price:
Get Latest Price
Brand:
Ding Shung
Validity:
Permanent
Date:
2016-05-24
Add to My Favorites Add to Inquiry Basket
Seller Information
DING SHUNG (Dong Guan) MACHINERY CO.,LTD.
China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile

The Cassette Stacker be able to extend paper length receivinq. it is be able to action for single piece of paper receiving in stacker. Optical sensor guard for auto warming inspection. Precisely sheet counter for indicate production.

Main technical specifications:
Model Collab 120 Collab 150
Max.   Sheet Size W*L (mm) 1200 x 1200 1450 x 1450
Min.   Sheet Size W*L (mm) 370 x 370 370 x 370
Primer   coating speed (M/min) 25-100 25-100
UV   Coating Speed (M/min) 25-75 25-75
Max   paper weight (gsm) 800 800
Min.   paper weight (gsm) 200 200
Coating thickness (kgs/ream) Water   base 1.6 1.6
Solvent base 3.5 3.5
UV   Coating thickness (M/min) 1.8 ~ 2.2 1.8 ~ 2.2
Operating   height (mm) 1140 1140
Power   require (KW) 80 80
Machine   Size (L*W*H) (mm) 17860 x 1936 x 2145 17860 x 2186 x 2145
Machine   Weight (kg) 8000 9000
