YK 1228 FULLY ATUOMATIC VACUUM TRANSPORT FLEXO FOLDER GLUER FFG BOX LINE


YIKE GROUP

Web: www.yikegroup.net

Email: info@yikegroup.net

WhatsApp: 0086 177 4385 9771



LEAD EDGE Feeder Unit





Lead-edge Feeding System

ü Can measure the corrugated cardboard thickness, can adjustment feeding gap automatic

ü 7.5KW high pressure centrifugal fans, according to the cardboard warping degree of frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission.

ü Left and right side baffle position electrically adjustable, screw-driven.and can remember by computer.

ü Front baffle adjust the position of the upper and lower intervals synchronization by manual.

ü Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.

ü Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.

ü Slotting part is equipped with the interlock switch, to achieve the emergency stop, stop feeding or feeding.


Machine Separation & Combination

ü Button switches electrically control the separation and combinationof machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.

ü Air pressure interlocks, lock securely, conveniently and accurately.

ü Machine clutch drive shaft is equipped with overload protection device.

ü Active self-locking function: if unit is not completely locking state, the host cannot start, to ensure the safety of machine and operator; while host normal working conditions, the unit clutch function is automatically lock, to avoid machine misuse  and personal injury.


Dust-removal System

ü Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.


Feeding Roller: Feeding Roller

ü Upper feeding roll adopts outer diameter φ156mm rubber roller, elastic buffer wear rubber (inside soft, outside hard), dynamic balance correction, to ensure smooth and accurate feeding.

ü Lower feeding roller adopts embossed rollers, hard chrome-plated, wear and smooth.

ü According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm

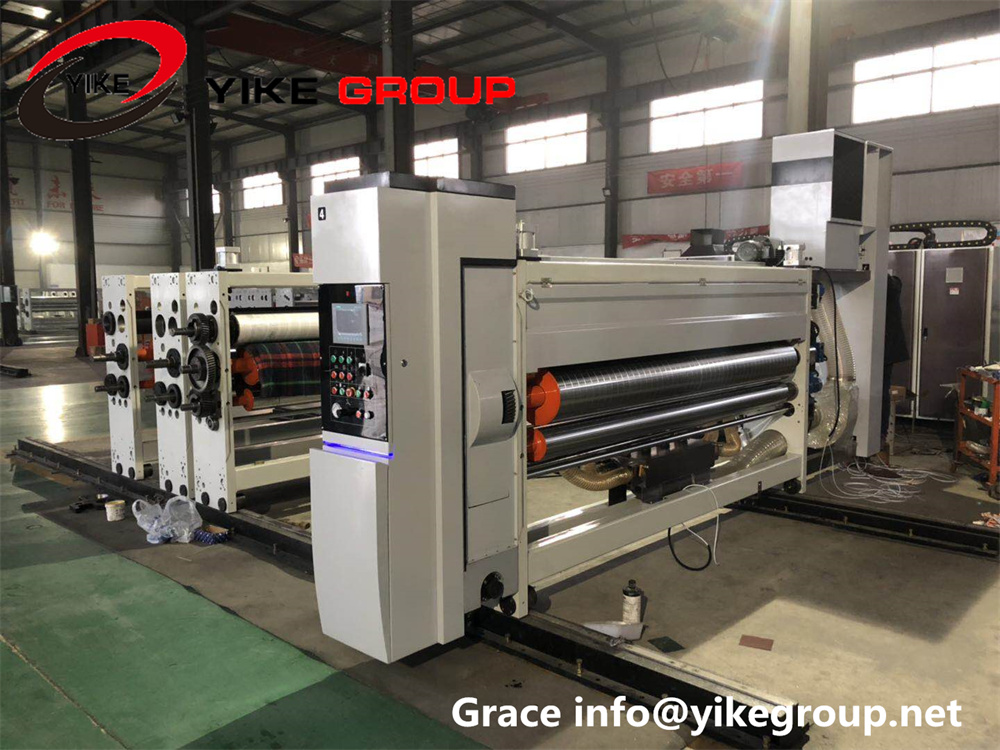

Printer Unit

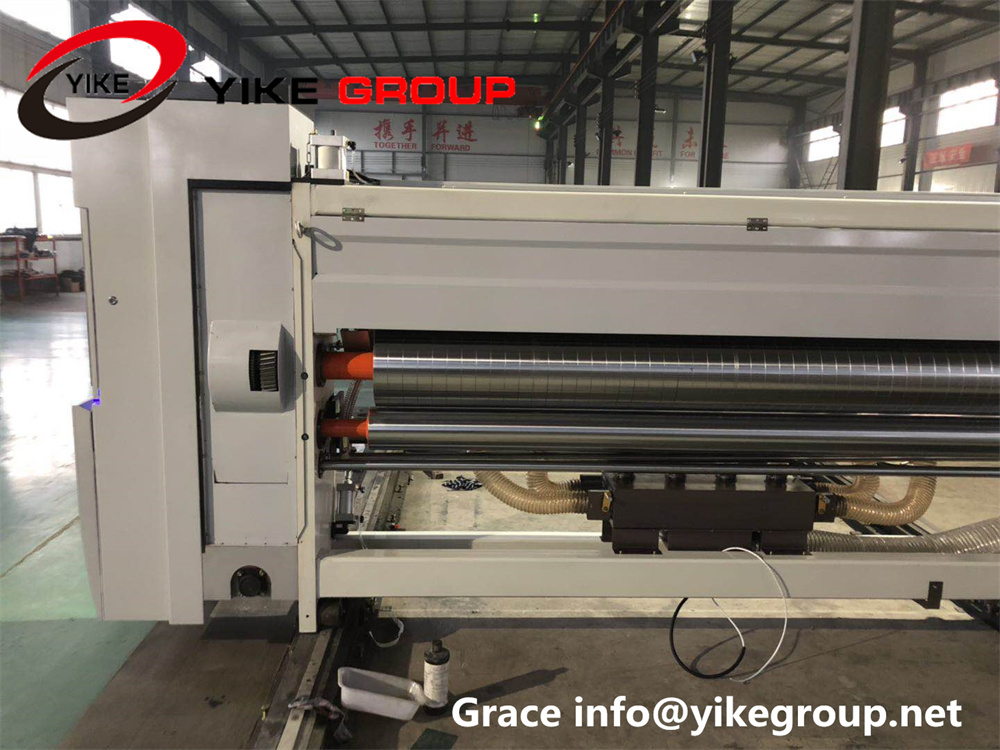

Printing Roller

ü With printing plate, outer diameter φ408mm

ü High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

ü Roller horizontal direction and circumferential direction with datum line, convenient for align plate

ü Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

ü Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.

ü Installed with foot switch to control plate roller reversing, convenient change plate

ü Auto-zero function, order memory.

ü Printing roller plate-change and fix-plate function.

ü Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.

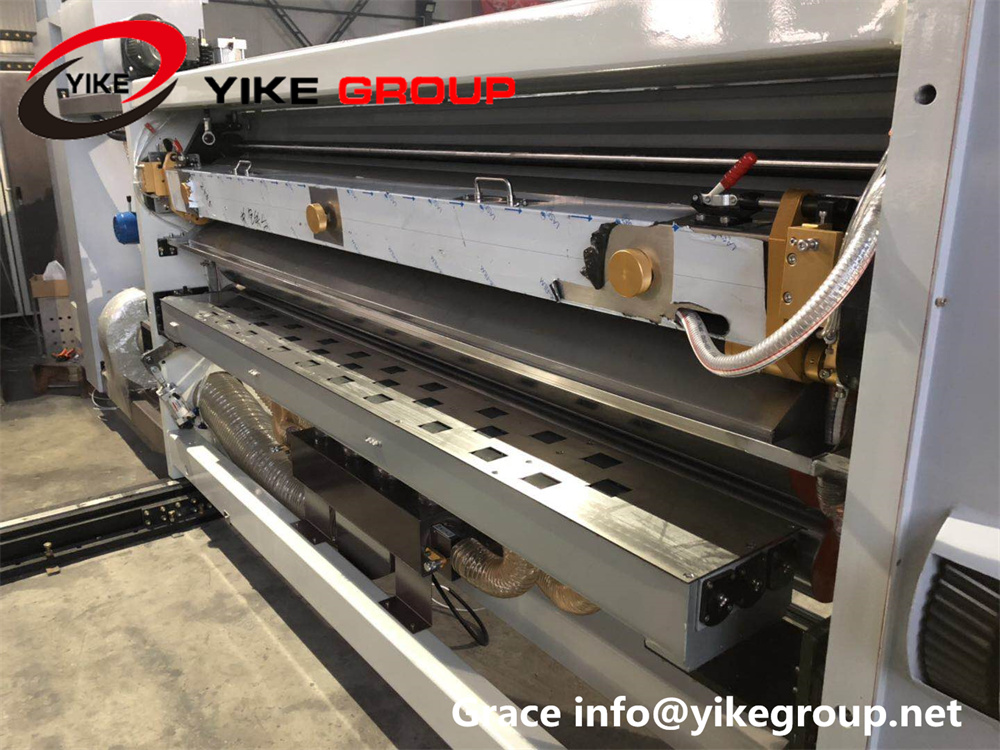

vacuum sucking transport UNIT:

ü Use Italy technical sucking transport device


Pressing Roller

ü Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation

ü Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy

ü Diameter 175mm

ü Printing roller can be adjusted for a distance 0-12mm

ü pressing roller, feeding shaft can be adjusted by manual , and loose and tight the roller also by manual.


Anilox Roller

ü Outer diameter φ216mm

ü Ceramic anilox roller, brand HAILI

ü anilox roller mesh200-800 LPI


DOCOTOR BLADE

ü Guangzhou famous brand Docotor blade

ü Rubber knife


Ink System

ü Pneumatic diaphragm pump, simple operation, convenient maintenance, supply stability

ü Circulating pneumatic ink

ü Screen for filtering impurities, guarantee printing quality


Phase Adjust System

ü Planetary gear structure

ü Digital computer  360 ° adjustment, both running and stopping state conditions

ü Printing phase adjustment of PLC computer display adjustment

ü After units separate, automatic reset system (eraser memory)
