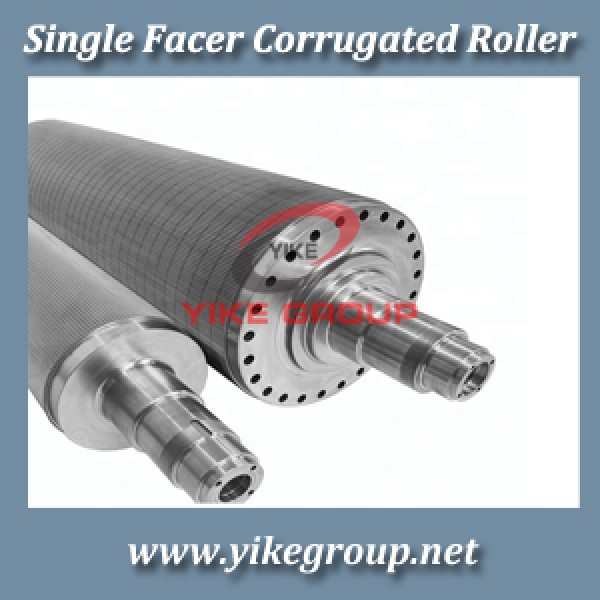

Corrugated Roller of BHS, TCY, FOSBER, YIKE GROUP Single Facer Machine
2200mm, 320mm diameter Hard Chrome Corrugated Roller
Features
High precision hard chrome steel A C B E F G flute corrugated roller
Type: Hard Chrome
Used for Single Facer Machine
Description
Hard Chrome Type Corrugated Roller
The upper and lower corrugated( corrugating, flute) roller for single facer machine
Made of 48 CrMo alloy steel or tungsten carbide with hard treatment by laser, the hardness is above HRC58o-60o
The surface is well-treated by grind and plated chrome.
Different types of flutes according to the user's request.
| Flute | A | C | BC | B | D | E | F | G |
| Profile | UV | UV | UV | UV | UV | UV | UV | UV |
| Counts(300mm) | 34±2 | 36±2 | 44±2 | 50±2 | 66±3 | 96±4 | 124±10 | 185±12 |
| Height | 4.6-4.9 | 3.6-3.9 | 3.0-3.4 | 2.6-2.9 | 1.9-2.1 | 1.1-1.8 | 0.7-0.8 | 0.5-0.65 |
| Take Up Rate | 1.51-1.59 | 1.44-1.51 | 1.42-1.49 | 1.36-1.42 | 1.40-1.41 | 1.29-1.39 | 1.22-1.26 | 1.20-1.25 |
