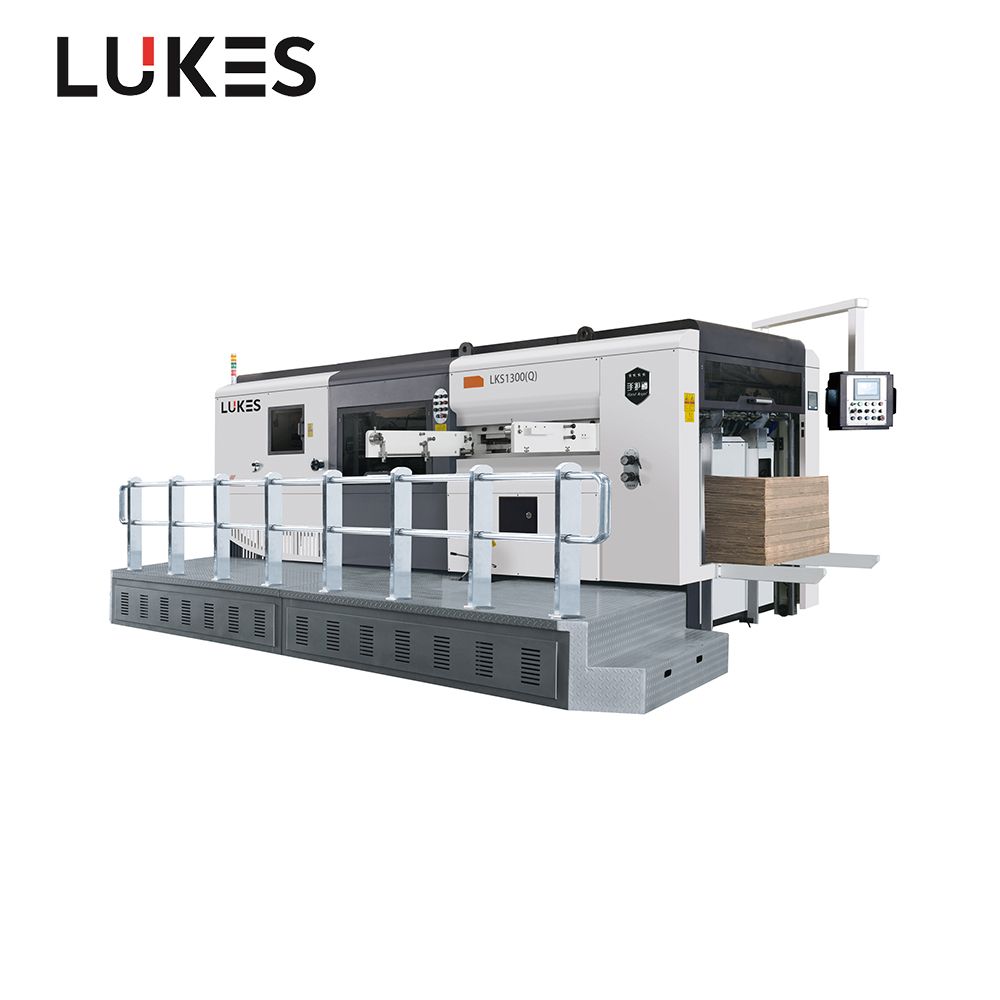

Hot Sale Safety Semi Automatic Die Cutting Carton Machine For Corrugated And Cardboard Box

Price:: Get Latest Price

Brand:: Lukes

Video:

Validity:: Permanent

Date:: 2022-07-19

Add to My Favorites Add to Inquiry Basket

Seller Information: Shandong Lukes Machinery Co., Ltd.; China; Business type: Manufacturer

Contact Seller: Contact Now

Product Detail Company Profile

Paper Creasing Semi Automatic Die Cutting Machine With Cut Out Of Automatic Paper

Products Description

Semi Automatic

Die Cutting Machine

This equipment can be equipped with a waste removal function, High working efficiency one day can die cut 30000 sheet per day / one or two shift.

Model	LKS1450	LKS1620	LKS1850	LKS2100
Max. sheet Size	1480x1080mm	1650x1210mm	1880x1420mm	2100X1500mm
Min. sheet Size	550x480mm	650x550mm	650x550mm	800x600mm
Max .Die-Cutting Size	1450x1050mm	1620x1190mm	1850x1400mm	2070x1480mm
Max. Mechanical Speed	4200s/h	4000s/h	3500s/h	3000s/h
Min. gripper waste	8&9mm	8&9mm	10mm	12mm
cutting rule height	23.8mm	23.8mm	23.8mm	23.8mm
electrical power	20.5 kw	20.5 kw	24kw	27kw
die cutting precision	± 0.5mm	± 0.5mm	± 0.5mm	± 0.5mm
Total Power	380V.50HZ, 3-Phase	380V.50HZ, 3-Phase	380V.50HZ, 3-Phase	380V.50HZ, 3-Phase
Max .Die-Cutting Pressure	300t	350t	400t	500tons
Gross Weight	17.5t	21.5t	26tons	28tons
pressure adjusting range	± 1mm	± 1mm	± 1mm	± 1mm
Stock range	corrugated board 1-8mm,cardboard 350g above	corrugated board 1-8mm,cardboard 350g above	corrugated board 1-8mm,cardboard 350g above	corrugated board 1-8mm,cardboard 350g above
Inner chase size	1480x1080mm	1646x1220mm	1890x1430mm	2110x1510mm
dimension	6330x4860x2350mm	6220x5155x2550mm	7640x5280x2600mm	8000x5800x2700mm

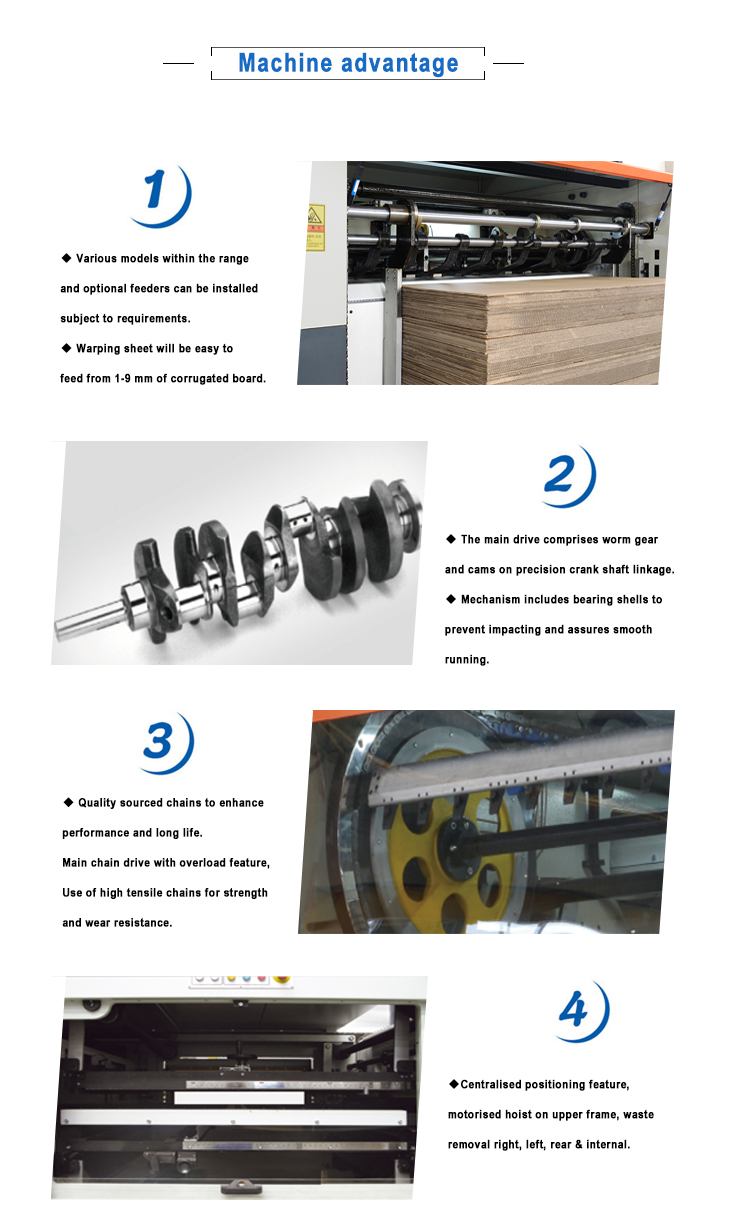

1. High working efficiency one day can die cut 30000 sheet per day / one or two shift.

2. High safety machine with 17 Photoelectric to ensure machine intelligence and safety operation.

3. It has centerline system and high precision moving plate process to ensure fast setting time and change order.

4. Very good performance to ensure low failure rate.

5. CE certification .

6. Vacuum package to ensure long time sea transport .

7. Die cutting machine core parts - base is duty heavy and rich material than other supplier in China.

8. All electrical parts and main parts adopts Germany / Japan first brand in the world.

9. Carton box creasing and die cutting machine mainly suit for offset printing box/ outside carton / flexto printing carton and beer box and transport carton etc.

10. Good and truth raw material with high precision parts processing by rich experience worker assembly.

11. Corrugated carton die -cutting machine is mainly die punching duty heavy carton making such as 3ply /5ply / 7 ply corrugated carton sheet .

Application

Company Profile

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full arrange

of service to solve the problems of clients. We supply multiple channels of service by 7x24 hours on

phone / on site technical support / on site service / preventive maintenance also training again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
