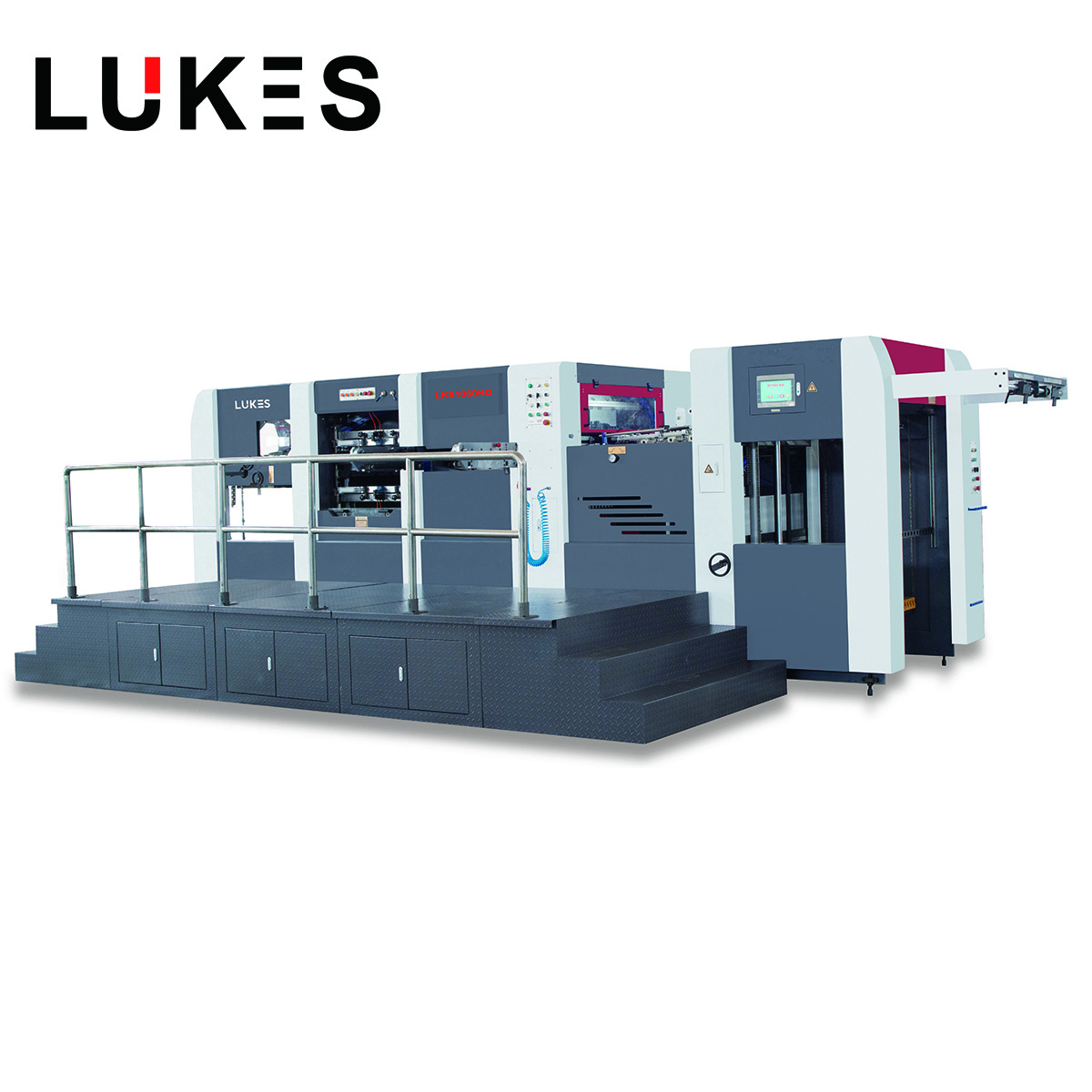

High Speed Automatic Die Cutting Machine/ Automatic Die Cutting Creasing Machine/ Flatbed Die Cutting Machine with Stripping

Price:: Get Latest Price

Brand:: Lukes

Video:

Validity:: Permanent

Date:: 2022-01-18

Add to My Favorites Add to Inquiry Basket

Seller Information: Shandong Lukes Machinery Co., Ltd.; China; Business type: Manufacturer

Contact Seller: Contact Now

Product Detail Company Profile

Products Description

die-cutting machine

It is suitable for processing light and thin paper boxes, such as toy boxes/cosmetic boxes/cigarette boxes, etc. Optional waste

removal function, the highest efficiency can reach 9000S/h.

Model	LKS-800H	LKS-1060H	LKS-1080	LKS-1050H	LKS-1200H
Max.paper size	810*610mm	1070*770mm	1080*780mm	1070*770mm	1200*780mm
Min.paper size	320*230mm	380*340mm	400*370mm	380*340mm	400*370mm
Max.cutting size	790*590mm	1040*750mm	1040*750mm	1040*750mm	1160*750mm
Min.gripper edge	7mm	8mm	8mm	7mm	8mm
Max.pressure	250T	580T	320T	330T	320T
Max.mechanical speed	7500s/h	7000s/h	7500s/h	9000s/h	7000s/h
Stock range	paper 90-2000g/corrugated≤4mm
Die cutting precision	±0.1	±0.12	±0.12	±0.11	±0.15
Total weight	9.5T/12T	19.8T/23T	15.8T/18.5T	17T	16.8T
Total Power	14.5KW	24KW	22KW	24KW	22KW
Dimension	560034002000mm 640038302000mm	670041002350mm 670041002350mm	685040802160mm 835039502360mm	655040802160mm 835039502360mm	685040802160mm

1. Pre-loading paper mechanism, automatic fine-tuning function of paper table, non-stop cycle paper loading function (optional), saving paper changing time and improving work efficiency.
2. The paper feeding bridge is driven by an independent servo motor, which can realize continuous overlapping paper feeding and single paper feeding.

3. The front stop gauge and the side pull regulation position, and the pull gauge/push gauge are alternately used to meet different thicknesses of paper. There is no indentation or flattening during paper feeding, which improves the quality of the product. One-key conversion, easy to use.
4. Use high-precision parts. The core components are manually ground, with high precision, good lubrication effect and high pressure, which can meet the die cutting of dense grid patterns.

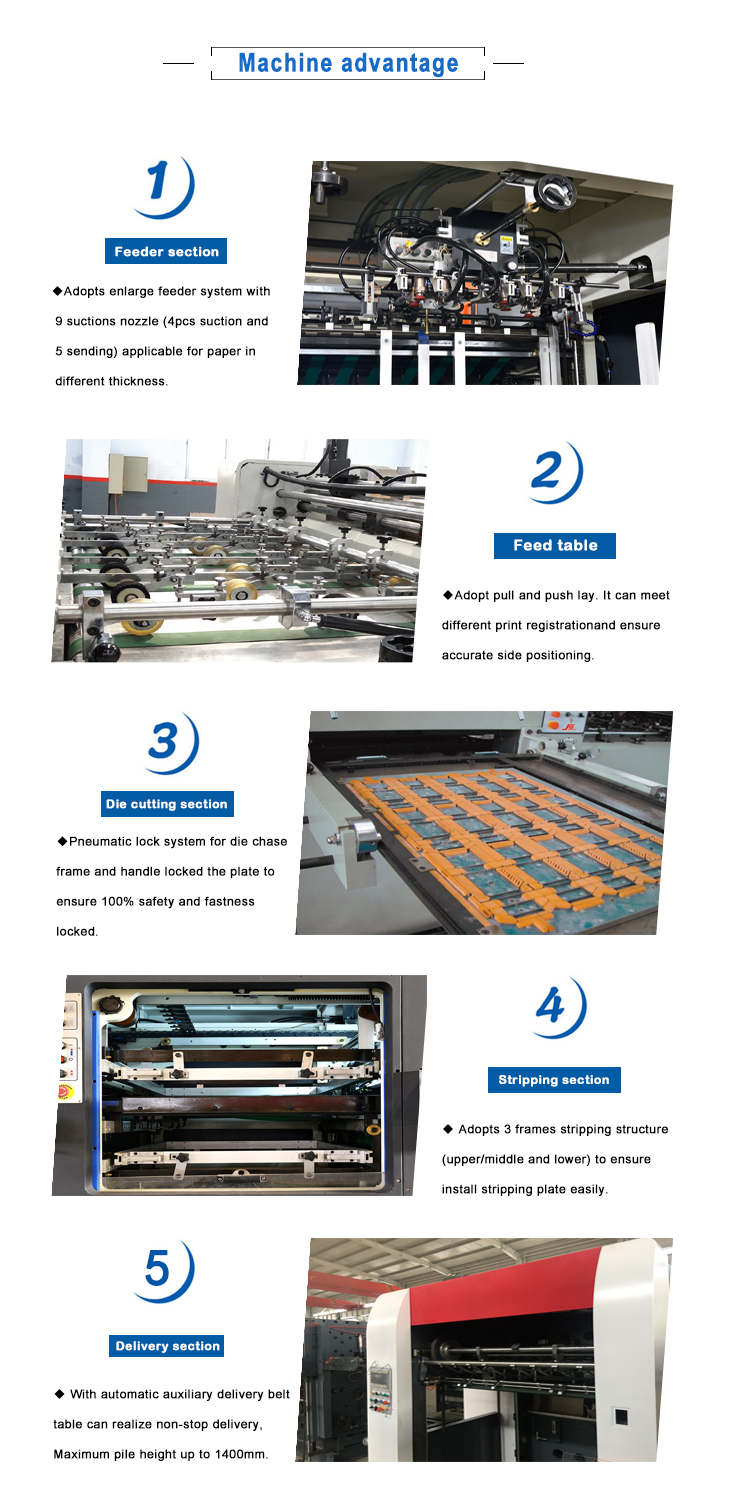

Advantage

Application

This high-speed automatic die-cutting machine can be equipped with a waste removal function, which is suitable for processing relatively thin cardboard, such as: cosmetic boxes/toy boxes/pill boxes/cigarette boxes, etc.

Payment & Delivery

Company Profile

Lukes machinery is a leading manufacturer and supplier for design 、manufacturer 、sale and service of flat bed die cutting machine and folder gluer machine as well as corrugated converting equipment such as flexo printing machine with case marker/ flute laminating machine /stitching machine and handle stripping machine for more than 15 years in package filed .

We have a professional team with 12 excellent technical engineers 8 after sales engineers and rich experience sales of corrugated /cardboard package industry and keeps good relations with many equipment factories.

Lukes group is not only on order fulfillment but also promoting a cordial relation with our clients forever to get best result. We takes a consultative approach and likes to full understand the needs of our client so that we are able to offer the best solution.

We will serve every of our clients with professional knowledge of packages industry by heart.

Looking forward to hearing from you to initiate a long term and satisfying relationship.

Certifications

Exhibition & Clients

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
