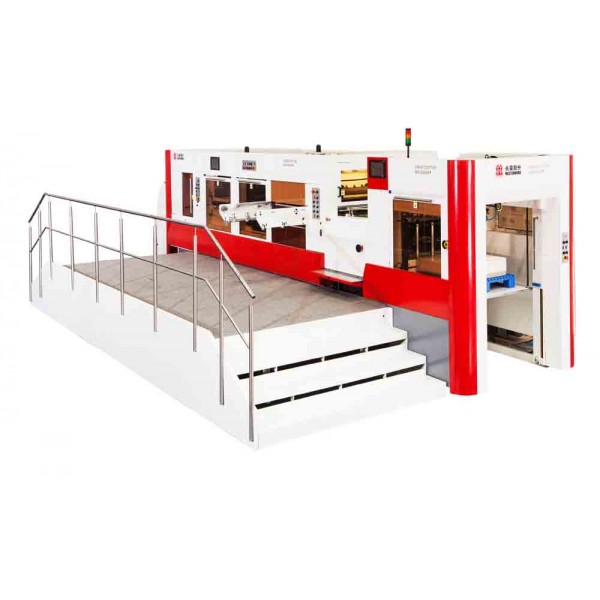

MK1060ESR Automatic platen die cutting machine with stripping and blanking

MK1060ESR Automatic platen die cutting machine with stripping and blanking

Price:
Get Latest Price
Brand:
Validity:
Permanent
Date:
2018-06-29
Add to My Favorites Add to Inquiry Basket
Seller Information
Masterwork Machinery Co.,Ltd.
China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile

Fully stripped and finished product collection can be done in one process

The stripping works can be trained as operation technicians and the new working team can be made up. The capacity can be improved by 100% percent owing to the same personnel appointment, and the batch stacking will be accurate. Moreover, the quality of products will be more guaranteed and waste will be reduced.

The value people lies to intelligence but not strength. Because of it, you can get rid of the heavy stripping process, and created more value.

Technical Data   MK1060ERS/MK1060ERSL
  Max sheet size   1,060 mm×760 mm  41.73×29.92 in
  Min sheet size   400 mm×350 mm   15.75×13.78 in
  Max die cutting size   1,060 mm×745 mm    41.73×29.33 in
  Gripper margin   13±4 mm
  Inner chase size   1,096 mm×770 mm    43.15×30.31 in
  Stock range sheet weight(g/m2)   90~2000 g
  Stock range sheet thickness    0.1~2 mm

  ≤4 mm corrugated paper
  Die cutting accuracy
  ≤±0.075 mm
  Max working force   260 T
  Max working speed   6,500 s/h
  Max feeder pile height (pallet included)   1,500 mm    61.02 in
  Max delivery pile height (pallet included)
  1,200 mm     47.24 in
  Main motor wattage   15 KW
  Rated wattage               15 KW
 Full load wattage   23.2 KW
  Air supply    0.6~0.7 MPa, ≥0.8 m3/min
  Dimension (L×W×H) W: platform included   7,360 mm×4,680 mm×2,600 mm  289.76×184.25×102.36 in
    8,610 mm×4,700 mm×2,600 mm  338.98×185.04×102.36 in
  Weight   ≈20 T
