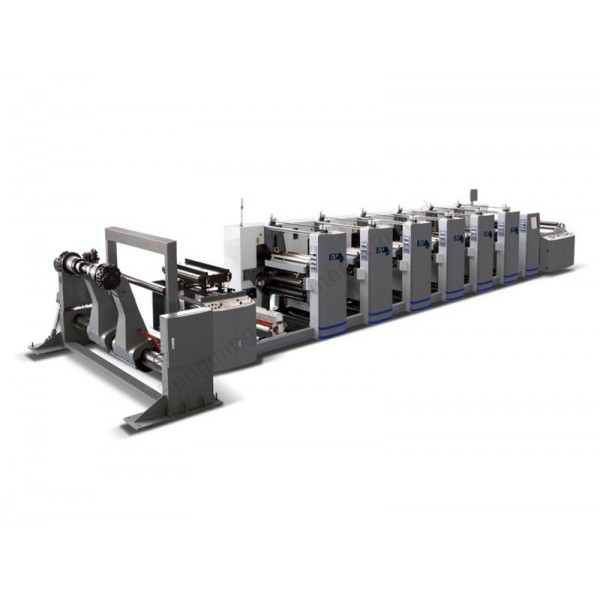

FM-B920-1850 Unit Type Flexographic Printing Machine

FM-B920-1850 Unit Type Flexographic Printing Machine

Price:
Get Latest Price
Brand:
Validity:
Permanent
Date:
2017-10-06
Add to My Favorites Add to Inquiry Basket
Seller Information
Wenzhou Fengming Machinery Co., Ltd.
China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile

Main Characteristics

1.       Capable of inline cleaning dust, printing and cutting

2.       Use water based ink and UV ink

3.       Ceramic anilox roller can be used for a long time, and can supply ink appropriately

4.       Warm drying, IR drying, UV drying are available

5.       Closed loop tension control is used to make printing tension much more stable,and register much more acurate.

6.       Automaticlly eletronic web-guide system

7.       Onlune printing register detection

8.       Register system can be operated automatically or by manpower



Application Object

Suitable for eco-friendly packaging, such as the pre-priting carton of paper bag, paper box, paper cup used for food, medicine use



Paper Used

kraft paper, carton board meterials, coated paper, liner paper, laminated paper, nonwoven paper.

Technical Parameters



Specification

35.5’’(900)

39.5’’(1000)

47.5’’(1200)

Max.Web Width

920mm

1020mm

1220mm

Max.Printing Width

900mm

1000mm

1200mm

Max Die-Cutting Width

900mm

1000mm

1200mm

Printing Repeat

286--1200mm

286--1200mm

286--1200mm

Die-cutting Repeat

286--1200mm

286--1200mm

286--1200mm

Max.Unwinder Diameter

1524mm/1200mm

1524mm/1200mm

1524mm/1200mm

Max.Rewinder Diameter

1524mm/1200mm

1524mm/1200mm

1524mm/1200mm

Gearing

1/8cp

1/8cp

1/8cp

Max Printing Speed

150m/min

150m/min

150m/min

Diameter of web roller

100mm

100mm

100mm

Base motor power

15kw-22kw

15kw-22kw

15kw-22kw

Drying mode

Warm Drying/IR Drying/ UV Drying

Oil used

Aqueous ink/ UV Ink

Power Requirement

380V 3PH 50Hz

Substrate

30g copy paper, cotton paper, 40-450g chrome paper, aluminum-foil paper, BOPP,PET,paper board, kraft paper



Technical Parameters

Specification

50.4’’(1330)

56.5’’(1430)

64.2’’(1630)

72.0’’(1830)

Max.Web Width

1350mm

1450mm

1650mm

18500mm

Max.Printing Width

1330mm

1430mm

1630mm

1830mm

Max Die-Cutting Width

1280mm

1430mm

600-1600mm

1830mm

Printing Repeat

600-1600mm

600-1600mm

600-1600mm

600-1600mm

Die-cutting Repeat

600-1600mm

600-1600mm

600-1600mm

600-1600mm

Max.Unwinder Diameter

1524mm

1524mm

1524mm

1524mm

Max.Rewinder Diameter

1524mm

1524mm

1524mm

1524mm

Gearing

1/8cp

1/8cp

1/8cp

1/8cp

Max Printing Speed

150m/min

150m/min

150m/min

150m/min

Diameter of web roller

100mm

100mm

100mm

100mm

Base motor power

22kw-30kw

22kw-30kw

22kw-30kw

22kw-30kw

Drying mode

Warm Drying/IR Drying/ UV Drying

Oil used

Aqueous ink/ UV Ink

Power Requirement

380V 3PH 50Hz

Substrate

30g copy paper, cotton paper, 40-450g chrome paper, aluminum-foil paper, BOPP,PET,paper board, kraft paper
