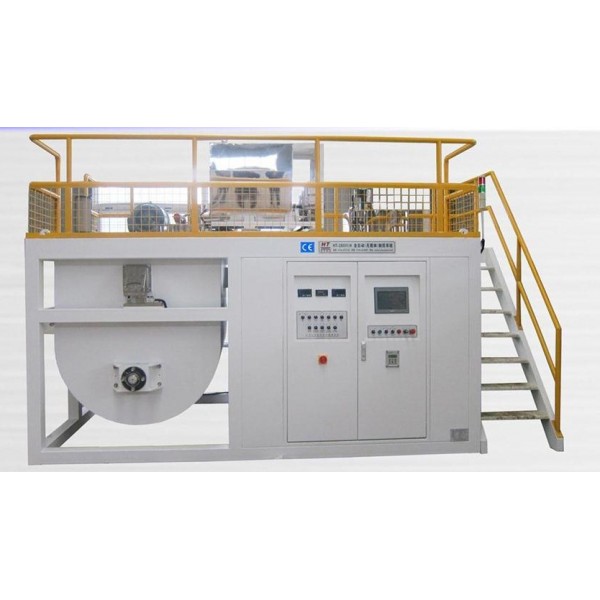

HT-Y/P Series Full auto pillow type glue making system

Glue mixer machine maker here(more than 20years), our machine can making and sending the starch adhesive to your corrugated paperboard producing line full automatic.

 (auto minimize the three major factors: curing temperature &pressure &time to affect the quality of glue; finish glue’s four indicators)

The advantages of automatic glue mixer(No-Carrier method) machine are:

1. No-Carrier method / Carrier method can be changed freely for the needs of high performance production..

2. Multi-group formula can be set, you can set different formulations according to different seasons and different environments.

3. Auto adjustment process can ensure the viscosity of the glue for varied raw materials.

4. Production line of glue mixer and glue feeding system unmanned, the whole process automatic control for improve production efficiency.

5. Main mix tank & addictive tanks & liquid delivery pipe are SS304 material,, beautiful and durable.

6. Electronic components are imported brands(such as SIEMENS PLC Controller and color view interface display ), ensure the system safe and reliable.

7. Key pump parts set the redundant function, ensure the system running smoothly without failure.

8. International advanced Siemens on-line viscosity tester.

9. Operating system can changed freely by manual / automatic , alarm system for starch material shortage, lye shortage , feeding fault, over temperature or system failures.

10. Man-machine screen with English/Chinese interface (or your language), the main controllers are the international well-known brands,

11. Weight control: 3pcs load cell for main mixing tank, 3pcs load cell for additional tank (borax, stabilizer, bridging agent).

12. Automatic statistical summary of the various raw materials into EXCEL documents, automatically count the amount of glue lines (optional), providing customers with remote printing table all the time, to facilitate cost control and production assessment (optional).

13. Provide remote monitoring and operation function that allows managers sitting in the office will be able to start and stop the device, to keep the operation of the device (optional).

For different clients needs, we have two different glue processing technology:

“Carrier method” is to make the matured glue and raw glue separately first, then mix them in are certain proportion. (raw and cooked starch method)

“No-Carrier method” is to add all starches in one time, then add some stabilizer and bridging agent to the glue in order to control the viscosity and gelatinization temperature.
