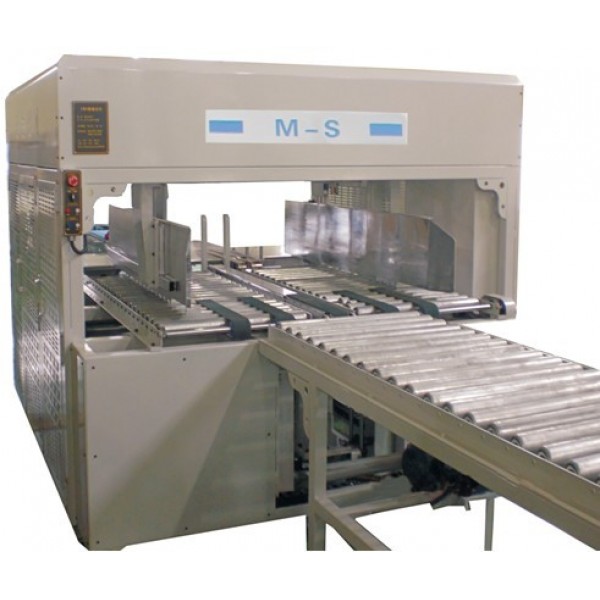

The MS-KMCB squaring and strapping
system is the newest generation of corrugated bundle squarer strappers
from the Company that developed the integrated squaring strapping
concept. The MS-KMCB features fast automated setup
changes, smooth bundle control and transport using variable frequency
drives and the latest in forking arm technology for extreme strap sealer
reliability and low maintenance comparing with other system by dramatic
cutting cost, Sealing capability is stable and very low error. Straps
are applied in the same direction of bundle transport direction.
SYSTEM FEATURES
Super stable sealing head
LG PLC control with Proface touch panel operator interface and easyly replaced by convinent product
Integrated squaring and strapping functions
Automated setup system resets to the
dimensions of the first bundle of the new size at the push of a button
or signal from the upstream equipment
Control of six sides of the bundle provides perfectly squared and uniformed bundles
Electrically driven, variable frequency controlled squaring and top/bottom conveyors provide smooth bundle transport
Choice of single or double straps to meet individual requirements
Electrically driven bundle compression
Strapping in the direction of bundle travel, typically in line with flutes
Optional exit conveyor belt for the last bundle
Very low maintenace cost and stable usage
Quick-service system in emergency situation comparing with European model
STRAPPING TECHNOLOGY
A pusher drives the bundle through
pre-drape strap, placing strap on three sides. Forking arm pulls strap
past the fourth side, completing the loop and activating the heat seal
Electrically controlled strap tension
Forking arm technology for swing arm and sealer
Thermocouple controlled heat sealing system reaches operating temperature in 10~20 seconds
TECHNICAL DATA
Capacity at conveyor speed of 0.6m/s
about 25cycles / min for typical box sizes
Strapping material
Common PP straps; width 5mm
Strap reel dispenser
Core diameter 200 mm
Width 190 mm
Depanding on Customer’s demand
Electricity
Mains voltage 220 V(low) , 50/60 Hz
Power consumption about 4.2~5 KVA
Conveyor height
800 ~ 1030 mm
Color
Frame , Panels & guards : grey,blue, Red and free on customer’s demand
Sizes ACM 1500 ACM 1300
Length min 170 mm 170 mm
Length max 1500 mm 1150 mm
Width min 400 mm 400 mm
Width max 1500 mm 1300 mm
Height min 30 mm 30 mm
Height max 350 mm 350 mm
Dunsoul China is a new strapping machinery company based on German and
Japanese technology. The performance of strapping machine series of 5mm
and 8mm can be compared with World first-class strapping machine. And
its cost-effective is best in the domestic market. We also positively
apply industrilal robots in a variety of automatic packaging lines. Its
stability, high efficiency and energy-saving make our products
wide-used in the printing, corrugate, paper and postal logistic
industries.
We are a pioneer, often leading the trend of Chinese
strapping and related machine. We also have a R&D and sales office
in Beijing, Shanghai, Guangzhou to get more information from the market
and our customer
