Product Description
Performance Specification

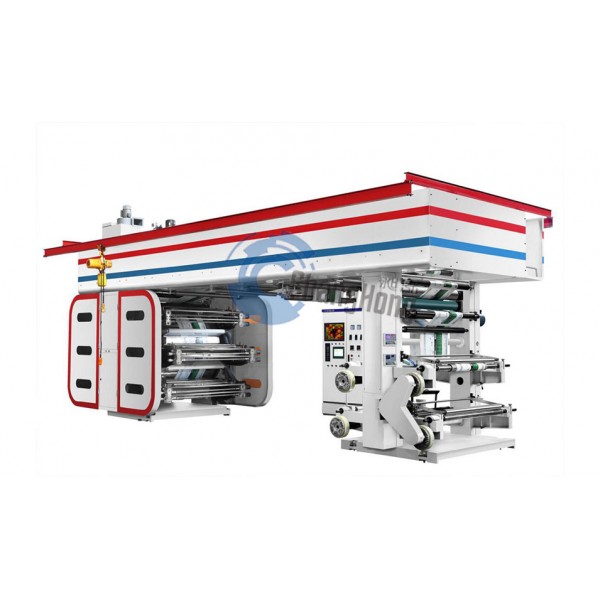

Machine Type:Central impression for better color registration. With the central impression configuration,The raw material to be printed is supported by the impression cylinder.
Greatly improving color register. Structure:Wherever possible,parts are commonized for availability Wear-resisting design.
Dryer:Hot wind dryer,automatic temperature controller for printing material dry safety,provided by the Separated heater box.
Doctor Blade:Chambered assembly for high-speed printing. Transmission:High performance Vector motor.
Buttons are placed in multiple places for machine start,up speed,down speed,stop,which make operators" convenience.
After machine start,it automatically reach the preset speed. Rewind:High performance AC motor with Period of poor wheel,low friction cylinder for stable web tension.
Color Registration:Push button-controlled in 4 directions:up,down,left,and right,for convenient operation.
Plate Mounting:Button-controlled fine-adjustment for oblique plate mounting. Gearing of Printing Cylinder:Circular pitch 10mms.
Characteristic
*print color ：2.4.6.8
*print width :600 800 1000 1200(mm)
*speed:30-200m/min
*double unwind &rewind
*servo motor rewind driver
*semi-automatic register colors
*video inspection
*PLC controller
Optional
*shaftless for unwind
*non-stop un&rewind
*Electrostatic treater before print
*Automatic register
*E+L Image static monitoring system
*Ink viscosity controller
*E+L EPC
*cooling water machine
*Half width 6+6 color print on both sides
Main Technical Parameters
| Printing color | 6 color |
| Max.width of Printing Area | 1200MM |
| Max.width of Material Area | 300MM |
| Printing Length(Repeat) | 300-1000M |
| Mechanical Speed | 200M/MIN |
| Machine Power | 75-80KW |
