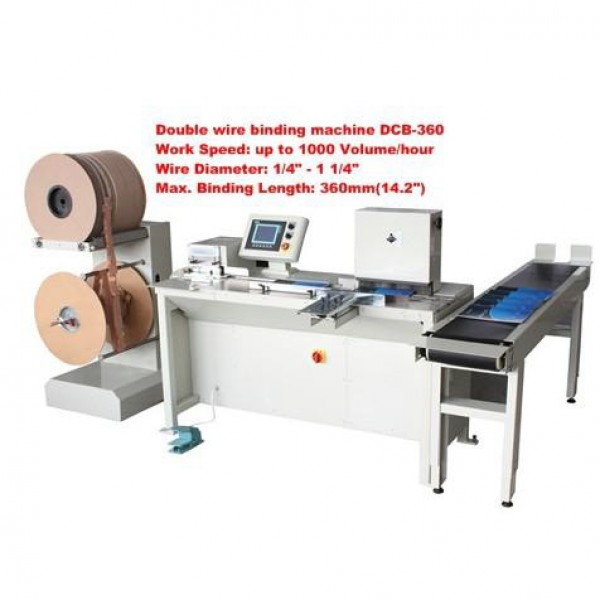

The machine is used for binding double wire books, notebooks, wall calendars, etc. It can bind 1/4" -1 1/4" without changing binding tools. With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably.
Advantages:
◆Controlled by PLC.Easy to set and adjust.
◆There are no tools to change as the closing press is adjustable for all the diameters.
◆Especially suitable for binding the notebooks which the cover is bigger than inner sheet
Technical data
Speed：Up to 1000 Volume/Hour
Air Pressure：5-8Kgf
Wire Diameter：1/4'' -1 1/4''
The max width of binding：360mm(14.2'')
Electric power：1PH 220V 50/60HZ (other voltage on request)
Machine Dimensions
Main machine：2020*950*1250mm
Feeding reel：780*560*1200mmx
Conveyor：2160*370*700mm
Net weight：300Kg
Pay attention to :
☆DCB- 360 have no mold ,include convey belt,Wire diameter :1/4''-1 1/4''
☆Voltage specification : 1PH 220V 50/60HZ (other voltage on request )
Ningbo Creative Automatic Co,Ltd is one of the earliest enterprises
which engage in developing and manufacturing the loose-leaf binding
facilities and coil equipments in China. Our products cover many kinds
of loose-leaf binding facilities from single coil(spiral) to double
coil(double wire).We are devoted to providing customers with diverse
binding solutions.
Depending on the advanced processing
facilities,an experienced hi-tech team,master processing craft and the
excellent after-sale service,our are marked all over the country as well
as exported to the overseas and we have achieved a create reputation
from our customers.
We would like to creat a wonderful future with numerous customers together.
