The usage

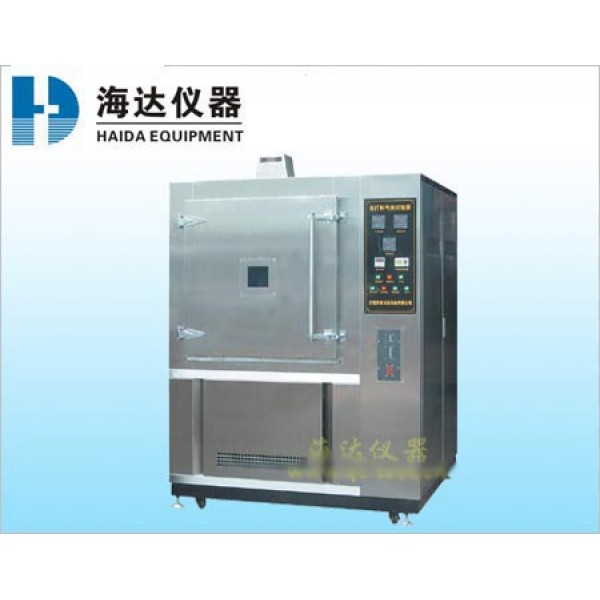

Programmable Xenon Weathering Aging Test Chamber is to test the product undergone
illumination / rain / condensation / temperature / humidity / wind and any other climatic changes.
Programmable Xenon Weathering Aging Test Chamber mainly for the test of non-ferrous/organic/rubber/plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.
The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC
Specifications:XenonTesting Machine
|
Model |
HD-E711 |
|
Inner Box Size (DWH) |
950950900mm |
|
Outside Dimension (DWH) |
130015001900mm |
|
Humiture Range |
(RT+10)~70C; 30~98%RH |
|
Humiture uniformity |
2C; 3%RH |
|
Rainfall time |
1~9999min, adjustable |
|
Rainfall cycle |
1~240min, interval is adjustable |
|
Xenon lamp light |
xenon long-arc lamp, 6KW10%, 290-800nm, 1000W/m2200 |
|
Heating/humidifying power |
2.0KW/2.0KW |
|
Sample spinning machine speed |
1~5r/ min (adjustable) |
|
Sample and xenon lamp distance |
300~375mm |
|
Box material |
Stainless Steel SUS304# |
|
Insulation materials |
Superfine heat insulation cotton |
|
Insulation body |
Superfine glass fabric |
|
Circulation system |
Single cycle, centrifugal fan |
|
Control system |
Germany KLOCKNER-MOELLER progammable controler |
|
Gas processing |
dischager for fector and harmful gas |
|
Power |
AC380V, three phase five wire, 10KW |
|
Use environment |
5C~+30C, 85%R.H |
|
Standard features |
1. Filtering screen viewing window; 2.Moistureproof lamp |
|
Security Protection |
Security device for circuit break, |
|
high pressure of the compressure, high temperature alarm |
