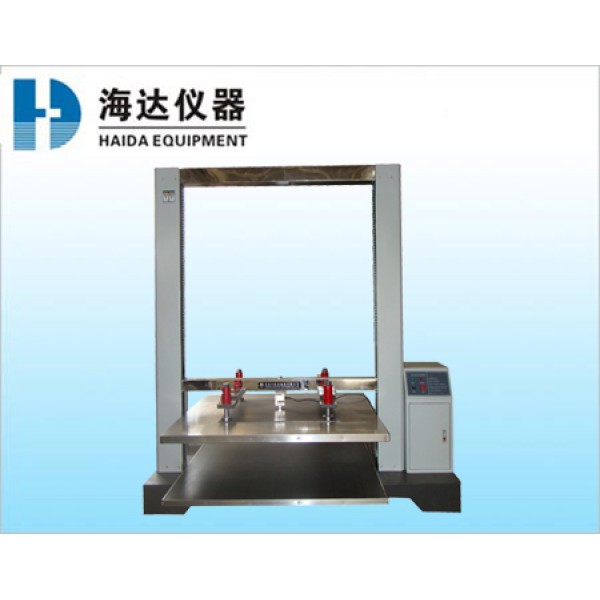

Computer Carton Compression Testing Equipment
Computer/digital carton box compression testing machine is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.
Specifications:
|
Model |
TT-A505S-1500 Digital Carton Box Compression Testing Machine |
|
Unit (switchable) |
Kg, Lb, N |
|
Capacity (optional) |
2 T ,5T |
|
Load Resolution |
1/100,000 |
|
Stroke (exclude the grips) |
400 mm |
|
Load Accuracy |
≤0.5% |
|
Test Space (L×W×H) |
1500×1500×1500mm |
|
Speed of Compression |
10 ± 3 mm/min |
|
Operation Mode |
PC |
|
Report Items |
Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
|
Structure |
AC Frequency Conversion Motor ( Taiwan); |
|
Dimension (L×W×H) |
2370×1500×2100mm (can be custom made) |
|
Power |
1ø, 220v/ 50Hz |
|
Weight |
Approx. 850kg |
|
Safety Devices |
Overload protection, overvoltage protection & limited position protection device |
|
Standard |
TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
