Productstop

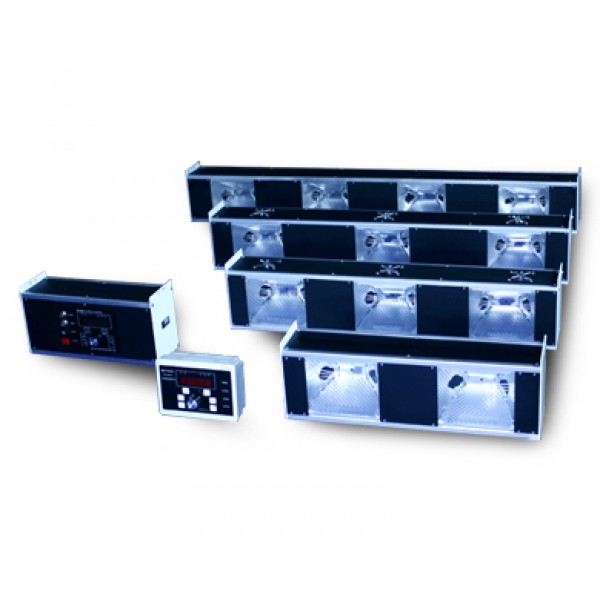

1.1 PN-02C series stroboscope is one multi-joint fixed stroboscope researched and developed by our company. It adopts high-performance chips as the core processing unit, dedicated display chip driver digital tube, equipped with real-time operation system. The digital tube display the flash times per minutes and working conditions at real time.
1.2 The multi-lamps of this series stroboscope can flash at the same time, also one of the lamps flashes. The lighting width is 200mm to 1500mm. We also can provide custom-made model according to the buyer’s required lighting area.
1.3 Well-designed installation accessories is also supplied with the strobosocops.
1.4 It is used in the high-speed printing machine, inspection machine, bronzing machine, slitting machine and rewinding machine.
Technical Supporttop
Sensor power supply: AC220V, 2A, 50Hz; AC110V, 2A, 50Hz.
Display: 5 digitals LED display
Stroboscopic accuracy: ±0.1%
Working mode: internal & external triggers
Frequency range: 50-5000f/min
External trigger function: support phase (lag angel) control
Input mode of external trigger: sensor, Hall switch, proximity switch
External output mode: PNP normally open
External trigger input signal: pulse input
Single working hours: can be set by function key
Cable length: 3M
|
MODEL
|
SIZE
|
IRRADIATION WIDTH
|
REMARK
|
|
PN-02C/350
|
350X120X180mm
|
≥500mm
|
One lamp
|
|
PN-02C/600
|
600X120X180mm
|
≥800mm
|
Two lamps
|
|
PN-02C/800
|
800X120X180mm
|
≥1000mm
|
Three lamps
|
|
PN-02C/1000
|
1000X120x180mm
|
≥1200mm
|
Three lamps
|
|
PN-02C/1250
|
1250X120X180mm
|
≥1500mm
|
Four lamps
|
Product Featurestop
3.1 Fast change between internal trigger/external trigger, twice the frequency, half the frequency can be adjusted quickly;
3.2 External trigger working mode ( by photoelectric signal), can track the patterns automatically;
3.3 Built-in memory, with automatic memory function of flash frequency and internal parameters, make the next operation convenient.
3.4 Adopt the advanced encoder, with the professional operation software, knobs adjustment.
3.5 With the function of automatic flash stop, can save the electricity, and extend the life of the tube.
3.6 The tube is made in German.
PNTOO is a well-known name in stroboscope, in fact it could be said to be the father of the China stroboscope industry.
HangZhou PNTOO stroboscope is a subsidiary of Hangzhou PNTOO Science and Technology Company. The company consists of a large group of industry specialists and experts in new technology and centralises research, manufacturing and sales as part of an integrated whole. The company’s mission is to increase the quality of stroboscope product development and expand international markets.
We aim to provide high performance stroboscope products which can satisfy the demands of every area of industry.
PNTOO stroboscope research laboratory was established in 1985. At the beginning the company was successful in developing China’s first specialist stroboscopic printing device. Currently PNTOO produces 20 major types of stroboscope alongside dozens of other products.
Nowadays, PNTOO stroboscopes have been widely used in the industries of military, aerospace, iron & steel, metal-processing, printing, packaging, paper-making, fiber & textile, wire & cable, shipbuilding, automotive manufacturing, chemical, highway camera, road traffic, tire test, motor test, measuring, product R&D, scientific applications, university teaching, image processing etc.
Details as follows:
For the quality inspection during printing process: soft package printing, cigarette material, labels, banknote paper, medicinal aluminum foil, ……
For the surface inspection of paper products and paper web forming inspection;
For the surface inspection of laser film, and the surface inspection of metal processing;
For the rotary speed control of textile spindles & spools of spinning machine and winding machine, for the weft inspection of knitting machine, to inspect if there is some askew weft before the textile leaves stretched frame, to inspect the spinning of sewing machine and other parts running conditions.
Used in the cold-rolled steel plant and thin coating workshop, to inspect the surface defects by eyes;
To inspect the running and vibration of aircraft engines by eyes, to inspect the cavitation phenomenon of propeller, turbines and propulsion system;
To inspect the injector performance during the R&D of engines, to analyze the vibrating frequency of exhaust gas treatment device;
Camera, high-speed imaging and video technology;
To monitor the cable marking and the working status of twisting machine.
Non-contact speed measurement;
To inspect the online product of beverage processing industry.
Used for microscope and endoscopy with photoconductor etc.
……
These include:
soft package printer stroboscopes
cigarette printer stroboscopes
paper inspection stroboscopes
iron and steel stroboscopes
aluminium foil stroboscopes
wire and cable stroboscopes
aviation and aerospace stroboscopes
road and traffic lighting
Water and fountain lighting
Weaving and textiles stroboscopes
Industrial video stroboscopes
Science education stroboscopes
Our products are suitable for use in all areas of industry, scientific research and quality control.
PNTOO is an outstanding player in the international market. The PN series of stroboscopes are sold all over the world including The USA, Japan, Germany, France, Italy, Argentina, Brazil, Australia, South East Asia, South Africa, Iran and India.
We welcome you to contact us and we promise to spare no effort in satisfying your requirements.
PNTOO – inspection made easy.
