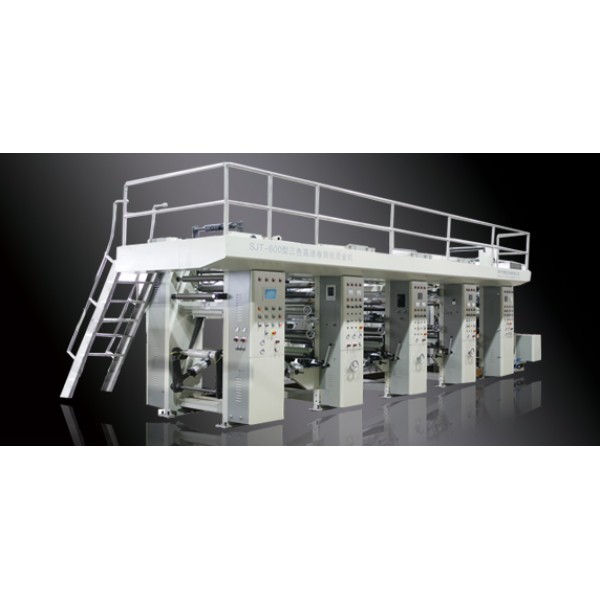

SJT 600S Three color High Speed E axis Web Hot Stamping Machine

SJT 600S Three color High Speed E axis Web Hot Stamping Machine

Price:
Get Latest Price
Brand:
Validity:
Permanent
Date:
2017-01-11
Add to My Favorites Add to Inquiry Basket
Seller Information
Haining City Tengda Machinery CO. LTD
China
Business type: Manufacturer
Contact Seller
Contact Now
Product Detail Company Profile

Can realize high-precision hot stamping register printing(twice register) and hot stamping without hotting the colour code,reducing the width of hot stamping film,bring down the cost.Besides, hot stamping without hotting the colour code can reduce the inaccuracy causing by hot stamping colour code,and improve the stability of hot stamping colour register.The twice register has pre-register function which can reduce the waste of material from starting.To ahieve high precision hot stamping over hot stamping,and the second hot stamping also don’t hotting colour code, reducing the width of hot stamping film,bring down the cost. Furthermore, the second hot stamping without hotting the colour code can reduce the inaccuracy causing by hot stamping colour code,and improve the stability of hot stamping colour register. Achieving hot stamping film skipping function,improving the use ratio of hot stamping film,and highly reduce cost.

Max.effective printing width 600mm
Stamping Colors 2
Speed 70m/min ( Max.Mechanical Speed:130m/min )
Max. roll width 620mm
Max.tipping paper stamping width 450mm
Paper thickness 30-100g/㎡
Max.roll Dia. Φ800mm
Max. stamping film Dia. Φ450mm
Max. roller temperature 220℃
Overprinter precision ±0.12mm
Opto-electric error-correction device 1
Machine power 350kva
Machine Weight 4800kg
Frame thickness 75mm
Compressed air pressure ≤0.6MPa
Overall dimensions 8300×2400×2200mm
