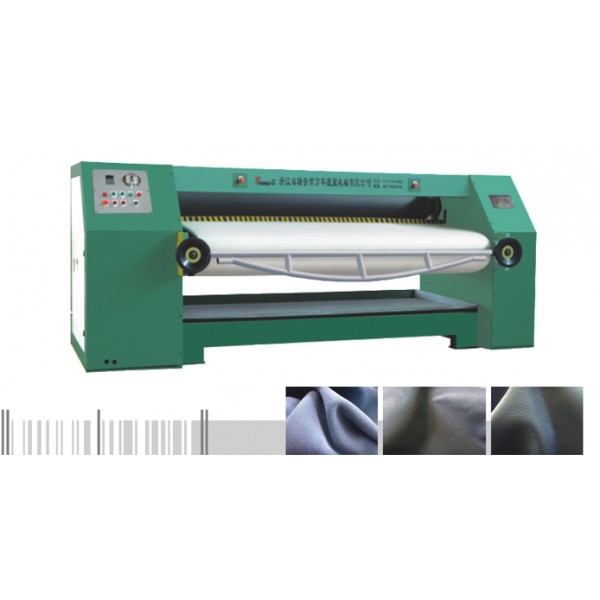

Type FH-1800/3000 Passing Single-grade Wringer
|
Functions
This model of machine is suitable for the squeezing and spreading of wet blue leather,such as pig and cattle hide.After finished
processed on the machine,the moisture in the leather is about 5%,and elimination of crease completely,fits the precise split needs.
Wide working surface is especially suitable for total cattle hide processing.The machine eases the work strength of operators,
improve the productivity,and can be continuously used.
Features
1、Feed speed of leather can be adjusted according to the request of technology of leather.
2、Equip with spreading blade rollers to spread or setting-out the leather.No crease on the leather after it processed,so increase
the leather rate.
3、Hydraulic system contains a variable displacement vane pump and hydraulic accumulator;ensure the working pressure stable
and equalization wringing efficiency;save the consumption of power and protect units.
4、The felts tension rollers on the top,front and back area are covered with Plastic-reinforced fiberglass,it's well anti-corrupted
|
|
|
Working width
|
2400mm
|
2700mm
|
3200mm
|
|
Working speed
|
0-15m/minKW
|
|
Total power(KW)
|
20.5
|
20.5
|
20.5
|
|
Hydraulic pressure(KG)
|
60000
|
|
Ourline dimension(L*W*H)
|
2400*4200*1900
|
2400*4500*1900
|
2400*5000*1900
|
|
Net weight
|
5000
|
5500
|
6000
|
A SURVEY OF COMPANY
Founded in 1 980s, Fanghua Company is located in Bailian Industrial Park, Ruian City, which is within one of the 1 4 coastaleconomic development zones that have been firstly open to the outside.Covering an area of 16000 sqm., this company has a rich science research force and advanced machinery process equipment, with large factory buildings. With the rapid deve-lopment of China\' reform and opening to the outside for over twenty years, this company has been developing into a manuf-acturerforleather machinery ranking the first among the counterparts in China. Now this company has stepped into a line of\"China\'s Famous Brands\". It has passed EU\'s CE mark certificate and IS09001 international quality system certificate. Its products have adopted many items of patent, top quality of functions, perfect after-sale serve and advanced civilization thought of environmental protection, occupying a large portion in China\'s market. Its products also sell far to Africa, South-East Asia and European markets......
