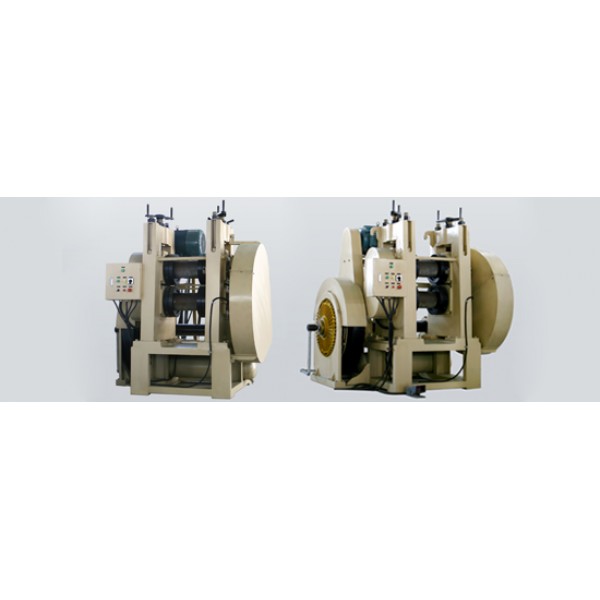

CR series semi-circular rolling machine bar roll forging equipment, the model is applied to rolling forging forging, can be also used for final forging and forging machine, or screw press is composed of forging production line; due to high speed of roll forging, forging and forging can be completed within a fire. The model has the advantages of high production efficiency, town turned off the light, the service life of the die is high, the labor condition is good, widely used in auto parts, forging industry, power machinery, aviation and daily necessities and other metal manufacturing industry.
Roll forging and die forging in：
1, has the advantages of high production efficiency, noise and vibration of small advantages;
2, equipment has the advantages of simple structure, easy to operate;
3, the material consumption is little, can save raw materials;
4, the mechanical properties, fatigue life;
5, reduce die main striking force, improving service life of forging die;
6, the forging roller mounting portion intermediate pay fan-shaped mold, so that the workpiece after repeated rolling stretch forming;
7, the friction clutch and brake using compressed air, compressed air valve by the electric control;
8, the forging roller center distance and angle adjustment mechanism can adjust, forging roll center distance and circular dislocation;
9, overload, overload protection device can automatically cut off the power, to protect the host;
10, operated by a foot switch or button controls, by selecting switch can realize the adjustment, single or continuous operation.
|
|
CR-30D
|
CR-38D
|
CR-50D
|
|
Roll forging die diameter（mm）
|
φ270
|
φ300
|
φ360
|
|
Effective width of roll forging die（mm）
|
200
|
220
|
280
|
|
The largest diameter of roll forging blank（mm）
|
φ30
|
φ38
|
φ50
|
|
The maximum length of roll forging（mm）
|
420
|
470
|
565
|
|
Roll forging center adjustment（mm）
|
8
|
15
|
15
|
|
Motor power(kw)
|
7.5
|
11
|
15
|
|
Weight of machine(kg)
|
3200
|
4100
|
5800
|
The Longli company is a member of China Forging Association, which has two plants called Zhejiang Longli Machinery Co., Ltd. and Rui’an Longli Machinery Manufacturing Co., Ltd.
Zhejiang Longli Machinery Co., Ltd is located in Ganshan Industrial Area, Deqing. It’s the center of Nanjing, Shanghai and Hangzhou, the convenient transportation has brought the industry a huge space for development.
Rui’an Longli Machinery Manufacturing Co., Ltd. is located in Pandai Industrial Area, Rui’an, which is located in the most influential private enterprise origin-Wenzhou.
Our main products: YQ series round bar cutting machine, Q45 Series precision bar shearing machine, CR series roll forging machine and other specifications, there are sophisticated and general products which can meet a variety of technological level processing. After 10 years of continuous development, we have become a professional manufacturer of forging equipment.
The company focus on technological innovation and scientific management, and has received a number of patent certificate. We adhere to the business philosophy of \"do first-class products and first-class brand\", and pay attention to internal management and after-sales service to enable customer’s satisfaction. Now the enterprise technology standards, product quality and production scale are now at the advanced level in the domestic same trade.
Looking ahead, Longli Machinery will as always keep improving, always adhere to the quality policy of \"continuous improvement to be better\". We will provide customers with quality products and satisfactory service.
