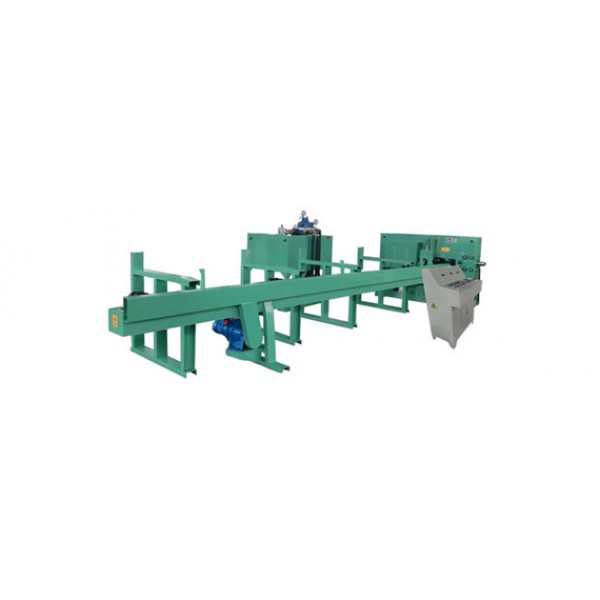

Hydraulic precision bar cutting machine

Price:: Get Latest Price

Brand:

Validity:: Permanent

Date:: 2016-06-06

Add to My Favorites Add to Inquiry Basket

Seller Information: Ruian Longli Machinery Manufacturing Co., Ltd.; China; Business type: Manufacturer

Contact Seller: Contact Now

Product Detail Company Profile

Y500 (630) T-type series hydraulic precision bar cutting machine for my company's own cut of the new mechanical bar, using an advanced programmable logic controller (PLC), high-quality electrical components and sealing elements, with a large tonnage hydraulic cylinder, when the shear round with pneumatic pressure device, hydraulic prop feeding device can be precisely controlled cutting of round cross-section of the roundness error; cut top round length with pneumatic feeding device can be more precise control of cutting the length of error round, reducing the weight of the error.
　　The model can be precision cut 40Cr, 55 steel, 45 steel, high-hard material, cut cross-section roundness can reach 0.96, the cross section slope ≤ 1.4, the weight of the error in the ± 5g, reached the advanced countries like the same product level, a variety of model processing industry, auto parts forging industry, processing industry, construction machinery and other essential products.

Model Parameter			Y315T	Y500T	Y630T	Y800T
Maximum shear force KN			3150	5000	6300	8000
Cut the biggest diameter mm			φ90	φ100	φ120	φ150
Cut the number of s/min			11	9	7	5
Gauge range mm			60-580	65-580	75-600	100-650
Section tilt			2	2	2	2
Cross-section roundness			0.95	0.95	0.95	0.95
Cut the weight error g=Cut diameter*±30%			±30%	±30%	±30%	±30%
Atmospheric pressure Mpa			0.6	0.6	0.6	0.6
HydraulicMpa			20	20	20	20
Main motor	Model		YYB225S-4	YYB225S-4	YYB250S-4	YYB250S-4
Main motor	PowerKW		37	37	55	55
Host size			23501570 1570	23401270 1770	26501850 1770	27501850 1900
Feeder motor		Model	MBW15-Y1.5-2C	MBW15-Y1.5-2C	MBW22-Y2.2-2C	MBW22-Y2.2-2C
		Powerkw	1.5	1.5	1.5	1.5
		Ratio	1：5	1：5	1：5	1：5
Feeder Size			18601320 7000	18601320 7000	18601320 7000	18601320 7000
Weight kg			10000	12300	16000	20000

Note: The equipment mainly to the maximum shear force main technical parameters of 45 # steel, for example calculations. Cut weight error calculation: Diameter of Cut * ± 30% = ± round weight (g)
Example: φ100 * ± 30% = ± 0g
