Product introduction:

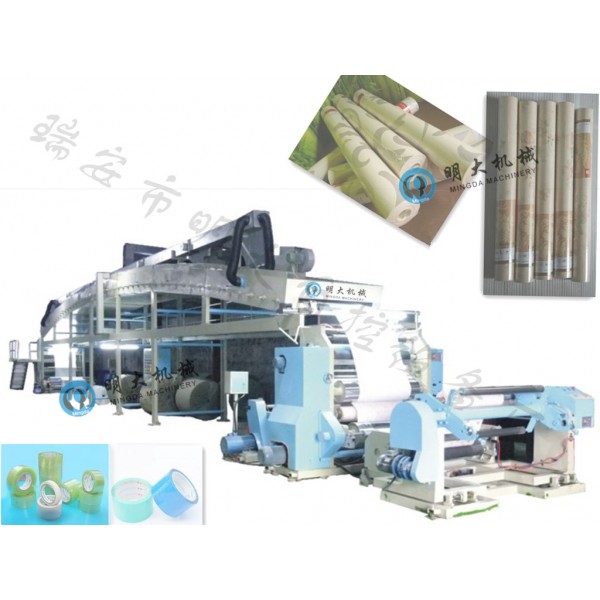

Use: the machine is the introduction of foreign advanced coating machine technology combined with their years of production experience and coating machine.
This machine is applicable to the production of adhesive tape, paper, bronzing film, laser film, gold and silver cardboard etc. shall be coated composite products.
Performance and characteristics:
1, using the United States Emerson inverter stepless speed regulation, large roller traction synchronous speed, roller and anilox is accurate, sensitive, anti-jamming.
2, the roller with blade coating method, a roller coating amount of choice.
3, mobile type scraper device.
4, five independent thermostatic stainless steel heating tube of infrared and hot air drying system, adjustable cycle of suction and exhaust device, the air intake and exhaust the wind was strong, dry thoroughly.
5, the guide rollers synchronized with the spindle rotation.
6, roller, traction pressure roller is controlled by the electromagnetic valve.
7, automatic meter device.
8, retractable shaft adopts health type inflatable shaft, loading and unloading operation.
Detailed description.
Main technical parameters
Type MD-B800 MD-B1100
Coating width 800mm 1100mm
Rewinding diameterφ 800mm φ800mm
Rewinding diameterφ 800mm φ800mm
Oven temperature 50-180℃ 50-180 ℃
Coating speed 50-90m/min 50-90m/min
Heating or electric heating stove or electric heating stove
The total power of 45KW 55kW
The weight of 6.0T 8.0T
Size 15000 x 1800 x 3750mm, 15000 x 2100 x 3750mm
