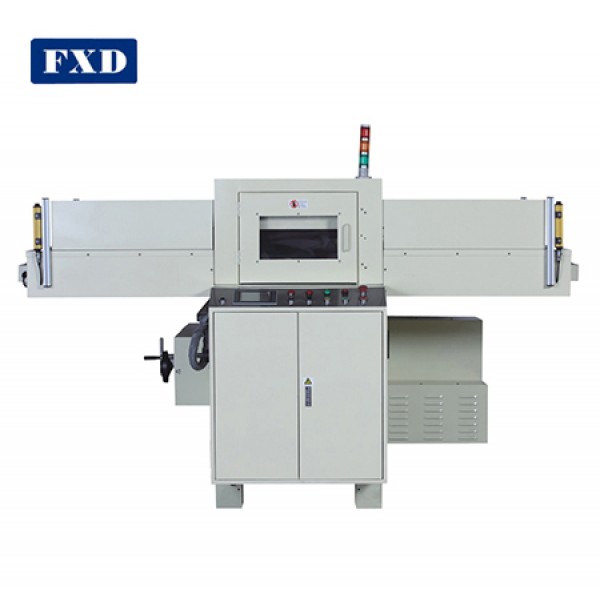

Screen protection film punching machine

Mode: P500

Brand: FXD

Certification: ISO9001

This photo copyright belongs to the company, no one has the right to embezzle the photo, or the company will pursue legal responsibilities.

Main advantage:

1: Precision foil die cutting press machine have flat pressing and high precision die cutting unit, shifting materials and slice are controlled by servomotor.

2: it finishes all the process of stamping and die-cut, recycle of waste material, slicing and roll winding for auto label brander simultaneously.

Standard specifications:

Maximum web width(mm): 500*600

Operation speed(pcs/h): 900

Machine Power(V;KW): AC380V;6.5KW

Machine size(mm): 2680*1750*1550

Machine weight(kg): 3800

Type of suitale mould: wooden die,silicon die,engraving die, etching die

Applications:

1 Electronics: special rubber cushion for electric appliance, velcro, conductive adhesive,  strong double-side tape, 3M, IT film switch, adhesive for vehicle manufacturing.

2 Dustproof materials: facial cotton, camera cotton, high density sponge, filter cotton, dustproof mesh, non-woven fabric.

3 Shockproof materials: foam rubber pad, rubber, clear rubber foot, PORON pad, flame retardant EVA, high foaming products.

4 Insulated EMI: nomex fish paper, aluminum foil, copper foil, PVC, PET, kraft paper, sponge jacket, pearl jacket.

5  Heat resistance and insulation materials: silicone rubber sheet, clear mica sheet, fabrics, heat insulation cotton(fabric).

Electrical configuration:

1). Control unit: Japan brand

2). Servo motor: Japan brand

3). Servo reducer: Taiwan brand

4). AC contactor: Europe brand

5). Touch panel: Japan brand

6). Filter regulator: Japan brand

7). AV servo motor: Japan brand

8). Gearhead: TUNYO

9). Voltage pressure meter: Japan brand

10). Bearing: Japan brand
