FB-320 Automatic Label Inspecting Machine

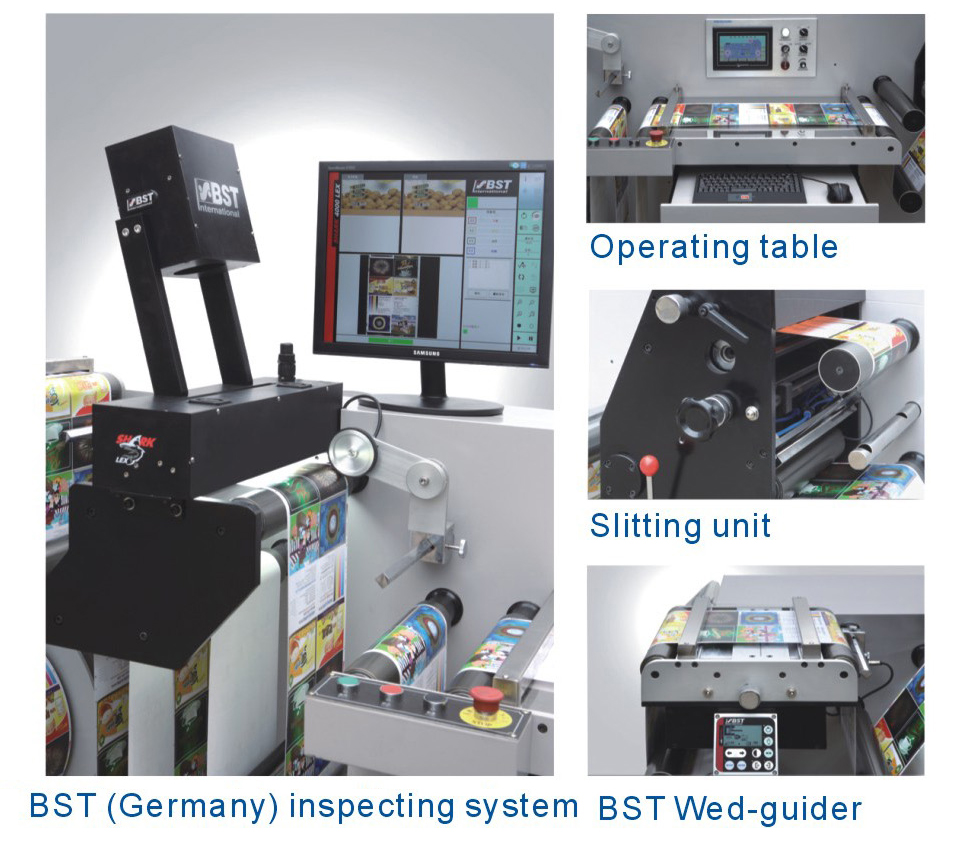

This machine adopts latest BST (Germany) inspecting system. It can detect defective labels such as missing label, color differnces, bad registration and scratched labels. It equips with inline slitting unit, has
the characteristic of fast speed, high accurate and easy operation, highly increased the final label qualityand output.
Technical specifications：
|
Max inspecting speed |
160m/min |
|
Max. web width |
320mm |
|
Max. unwinding diameter |
650mm |
|
Max. rewinding diameter |
650mm |
|
Slitting width |
20-300mm |
|
Total power |
5kw |
|
Voltage |
380V 3P 50Hz |
|
Overall dimensions |
2850x1000x1500mm |
|
Weight |
1450kg |
Main Specifications:
|
●DRIVE DEVICE CONTROL SYSTEM |
|||
|
Description |
Note |
Quantity |
Brand name |
|
Inspection system |
|
1 |
BST Germany |
|
PLC |
|
1 |
Siemens |
|
Servo system |
|
1 |
Yaskawa Japan |
|
Web-guiding device |
|
1 |
BST Germany |
|
Touch screen |
|
1 |
Weinview Taiwan |
|
Video system |
|
1 |
Samsung |
|
Unwinder tension controller |
|
1 |
Mitsubishi Japan |
|
Unwinder tension transducer |
|
2 |
Mitsubishi Japan |
|
Unwinder magnetic powder brake |
|
1 |
China |
|
Switch、Button |
|
many |
Schneider France |
|
Micro relay |
|
13 |
Omron Japan |
|
Switch power supply |
|
2 |
Omron Japan |
|
Contactor |
|
3 |
Schneider France |
|
Circuit breaker |
|
5 |
Schneider France |
|
Connector |
|
1set |
Weidmuller |
|
Limit switch |
|
3 |
Schneider France |
|
Electromagnetism valve |
|
9 |
AIRTAC Taiwan |
|
Air cylinder |
|
10 |
AIRTAC Taiwan |
|
Warning light |
Red,orange,yellow |
3 |
Siemens |
|
Photocell sensor |
|
1 |
China |
|
Rewinder tenstion controller |
|
1 |
China |
|
Rewinder magnetic powder clutch |
|
1 |
China |
|
Rewinder transducer |
|
2 |
China |
|
Transformer |
|
1 |
China |
