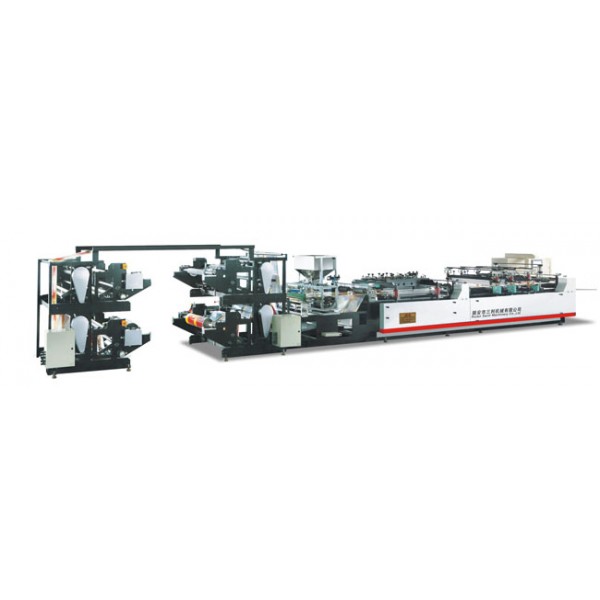

Welding nozzle
Three sides sealing
Meterial: Various compound films
|
Feeding driving AC motor |
7kw |
|
Upper and lower driving AC motor Warping traction motor |
3.0kw 4kw |
|
Side heat seal device Lateral heat seal device Control system and others |
12kw 12kw 3kw |
|
Total Power Gas pressure |
Approx 38kw 0.6Mpa(6kgf/cm2) |
|
Cooling water Dimension |
Approx 15L/min 15000×2000×1900mm |
|
Gross weight |
Approx 6000kg |
|
Bagging Speed |
35-70pcs/min (According material & Operating, The size of welding nozzle) |
|
Bagging width |
Max. Width1000mm |
|
Bagging length |
when the set program is above 320mm, it will automatically change into multiple conveyances. |
Function indication
Warping mode
Fabrication: Put the warp beam horizontally, with V fold support, and pneumatically lock.
Control: Tension is automatically controlled by swimming roller, magnetic power brake,
displacement sensor etc.
Driving mode
Feeding traction: Driven by AC servomotor
Upper and lower sealing press: Driven by AC servomotor
Control mode
Adopt the industrial control equipment, domestic displayer
Adopts double photoelectric control
Functions
Temperature:0-300℃,contact-free automatic control, CRT displaying.
Automatic count: presetting is available.
Hole puncher for welding nozzle:1 Unit, It can move on all sides.
Feeding unit for welding nozzle(vibrating tray):The vibration plate
automatically feed system of the nozzle, then by PLC centralized
control positioning, hot pressure system to complete.
Punching device: time can be preset, continuous or interval punching
is available.
Working mode: printing, non-printing.
Mode of multiple conveyances: twice to six times conveyance.
Measurement for length: distance between color scale can be measured
photoelectrically.
