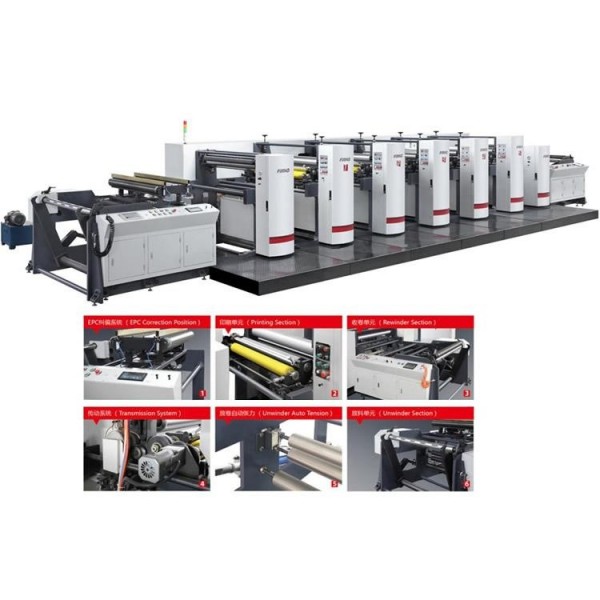

This machine is a flexo printing machine which adopts flexible photosensitive resin plates, rubber plates as the base material, anilox rollers for transfeering link,liquid link for printing. It is controlled centrally by PLC system and generally consists of unwinding section,infeed section, printing section,drying section,outfeed section,rewinding section and control section. This machine is an ideal machine for printing paper cup,carton,paper bag,paper package, and so on.
|
Technical Data |
||||
|
Type |
JZYS-D1050 |
JZYS-D1350 |
JZYS-D1550 |
|
|
Max web width |
1050mm |
1350mm |
1550mm |
|
|
Max printing width |
1030mm |
1330mm |
1530mm |
|
|
Max die-cutting width |
1050mm |
1350mm |
1550mm |
|
|
Printing repeat |
380-1200mm |
380-1600mm |
380-1600mm |
|
|
Unwinder diameter |
1524mm |
1524mm |
1524mm |
|
|
Rewinder diameter |
1524mm |
1524mm |
1524mm |
|
|
Gearing |
1/8cp |
1/8cp |
1/8cp |
|
|
Max printing speed |
150m/mm |
150m/min |
150m/min |
|
|
Diameter of web roller |
100mm |
100mm |
100mm |
|
|
Base motor power |
11kw-15kw |
15kw-18.5kw |
18kw-22kw |
|
|
Oil used |
A.aqueous ink B.UV UV ink |
|||
|
Drying mode |
A.Warm drying B.IR drying C.UV UV drying |
|||
|
Power requirement |
380V 3PH 50Hza |
80V 3PH 50HZa |
380V 3PH 50HZa |
|
