1. Program control with infrared sensing, no connection, be used with any brand
developer.
2. Fast and slow automatic segmentation, stepless speed regulation.
3. Receive uninterrupted publication of processor.
4. With emergency safety switch, safe totally .
5. Large load, more than 100 plates.
6. Separate carts, convenient plates convey (horizontal).
|
Model
|
SZ- LS860
|
SZ- PSR940U
|
SZ- LR860
|
SZ- LR1200
|

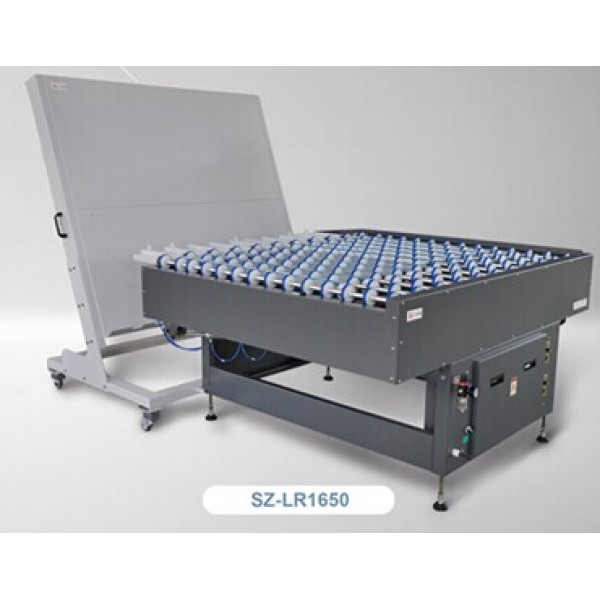

SZ- LR1650
|
|
Max.plate width
|
1100×860mm
|
1230×940mm
|
1100×860mm
|
1500×1200mm
|
1425×1650mm
|
|
Min.plate length
|
400mm
|
400mm
|
400mm
|
400mm
|
400mm
|
|
SPEED
|
0-3m/min
|
0- 3m/min
|
0-3m/min
|
0-3m/min
|
0-3m/min
|
|
（L×W×H）
|
1400×810×1500mm
|
1720×1260×1265mm
|
1588×872×1430mm
|
2028×1210×1635mm
|
2530×1700×1780mm
|
|
POWER
|
1Φ220V/2A 50/ 60Hz
|
Specialized in pre-printing plate making equipment, Shangzun Machinary Company possess excellent research and production capacity. Its main products includes,exporsure frame series,ps plate processor series,printed plate preserve machine,CCD cross drilling machine,CTP plate processor series(thermal,photopolymer),Corner conveyor, automatic ps/ctp plate stacker and so on.
We work with some world famous brands and market all over the world.With the vision of "Quality First,Respect Morality",Shangzun Machinery adheres sophisticated technology and good after-sales service,puts forward the service initiatives of "return the unsatisfied within one year", and afford technical support to help customers to establish the standardized plate concept,so as to increase printing quality substantially, which brings the praises from all the users.
Shangzun Machinary established in Shanghai,and set up offices also in Beijing, Guangdong, Wuhan. With the support from sales agents all over the country, we keeps growing and developing,and becomes the sincere friend of all the printing and packaging enterprises.
