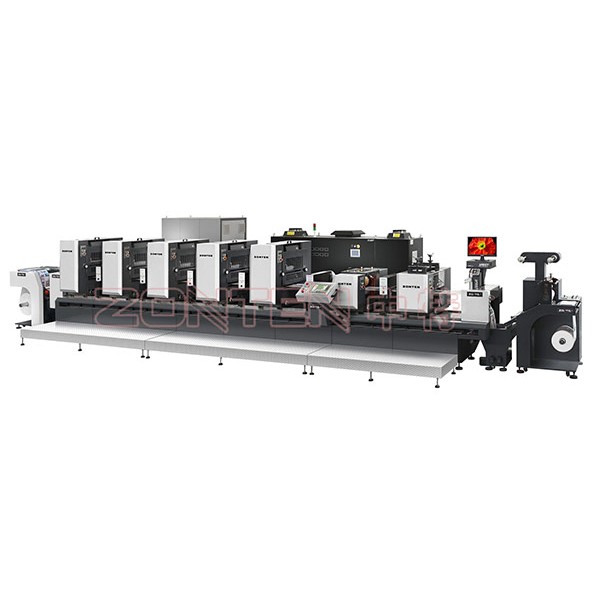

ZTJ-330 Intermittent Offset Label Presses

Characteristics :
1.Servo driven : Independent servo driven system in each unit to guarantee stable register at high printing speed.
2.Printing unit : Use the most advanced inking system which has 23 inking rolls,  four large diameter form rolls included and alcohol damping system to guarantee printing quarlity.
3.Pre-register system : Based upon the printing length, log data into the sliding control station, each unit will automatically be adjusted to its ready position.
4.Register system : Each printing unit can remote adjust register which includes lineal,  lateral and skewing without stopping the press to save time and reduce the waste of substrate.
5.Vacuum backflow control unwind : Vac cum back flow cylinder should be able to prevent scratches on the back of P/S label during intermittent motion.
6.Joystickless : Fully automatic operation system including pressure adjustment,  inking roll washup, roller impression, etc.
7.Easy to operate : Equipped with sliding touch screen control station which can be moving around to increase the efficiency of operator.
8.Printing size : Paterted technology to minimize printing size to achieve larger scale of  variable size printing.
9.Control system : Apply electronic component from famous international brand to guarantee long term reliable operation.
10.Lubrication system : Centralized automatic lubrication.

Optionals :
1.Automatic ink roller washup system. 5.CCD Camera.
2.Remote inking system. 6.Digital printing unit: It is a colorful non-contact variable information printing system which can combine with traditional printing technology to perfect level.
3.Cold foil stamping device.
4.Rotary silk screen printing unit.
 7 .UV flexo printing station: Equipped with anilox roll to do the UV coating or white color printing on transparent material.
 8 .Letterpress printing unit.
 9 .Rotary diecutting device: Use flexible die and magnetic cylinder to do any shape's cutting.
 10 .Laminating device:A intermittent laminator can be added before rotary  diecutting during high  speed intermittent printing.

Sliding touch screen control station :
Control station can be moved between each printing unit. All the operations can be completed on the spot, such as color registration, printing pressure adjusting, lineal/lateral positioning and skewing adjustment to guarantee the efficiency of production.

Technical specification : Max. web width 330mm Max. printing width 320mm Printing repeat 100~320mm Thickness of substrate 0.1~0.3mm Machine speed 30-200rpm(50M/min) Max. unwind diameter 700mm Max. rewind diameter 700mm Pneumatic requirement 7kg/cm2 Total capacity 30kw/6 colors without UV 30kw/6 colors (Not including UV) UV capacity 4.8/kw/colors 4.8kw/color Power Three-phase 380v three phase 380V Overall dimension(L×W×H) 9500×1700×1600mm Machine weight about 9/t/6 colors about 9 ton/6 colors Notes: With the viriation of the length to be printed, machine speed should be changed. *Its overall dimension and manufacturing Process are subject to change without further notice.
