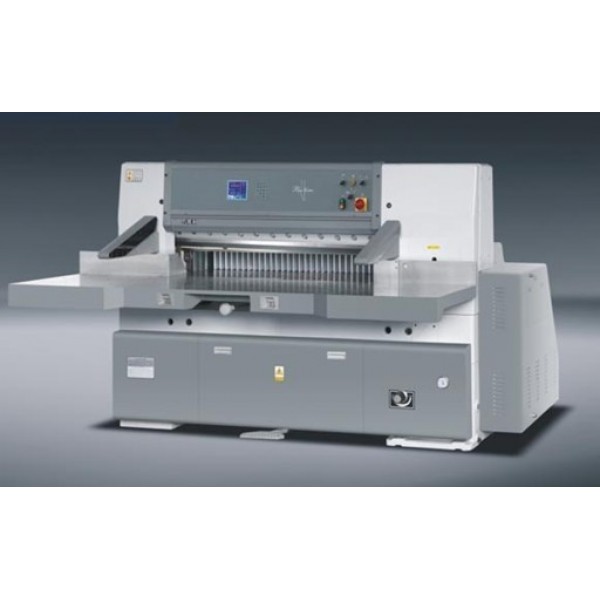

Technical Data
Cuttign width cm 130
Cutting height cm 13
Cutting length cm 130
Main motor power kw 4.0
Weight kg 4000
width with sideway cm 315
cm 216
Lehgth cm 249
Front table length cm 71.5
Table height cm 90
Cutting speed times 45
Overall dimensions cm 280*140*191
Voltage(three-phase V 361-399
Wire size mm2 2.5
Main Performance
1. Castings using advanced resin sand molding, clear internal structure, Arranging to meet international standards HT250, the growth of sports sites more effective life of the friction
2. display with blue LCD screen 5.7 inches in Taiwan.
3. computer interface using user-friendly design, allows the operator to easily operate
4. Taiwan / Delta converter is used as paper feeding system，and locateon presicion up to ±0.1mm.
5. full machine control part of the main low-voltage electrical appliances imported Schneider.
6. Hydraulic some of the pressure adjustable.
7. The frame structure of the international popular split, effectively increasing the machine cutting precision, user-friendly maintenance.
8. chrome work platform, saving the user's maintenance time, extend its life.
9. work platform equipped with inflatable structures to facilitate the pushing of paper and feed.
10.with a highly reliable protection of the six groups of grating, ensuring operator safety.
11.hook-like structure mounted knife, make easy work tool changes.
12.high-precision, high rigidity box-type paper sector, the wiring of the double-rail to ensure that the paper feed precision.
Ruian Wandeli Printing Machinery CO.,LTD. is the specialized production paper cutting machine’s enterprise, since the origination, take “the science and technology as the first productive forces” has been the guiding principle, take the customer demand as an objective, take “the high tech, high grade, the high efficiency” as the development guidelines, Our company absorbs the Western vanguard technology positively and domestic and foreign travels together the characteristic, makes up for one’s deficiency by learning from others’ strong points and displays own characteristic, the development user-friendly product, strives for the product each target to achieve the domestic advanced standard, satisfies general customer the request.
To improve the product quality and the prestige comprehensively, Our company the country passed the ISO9001:2000 international quality control system authentication in 2004, in 2007 through the CE authentication, formed the collection “the science, the production, the sale, the service” for the main body Advanced enterprise.
