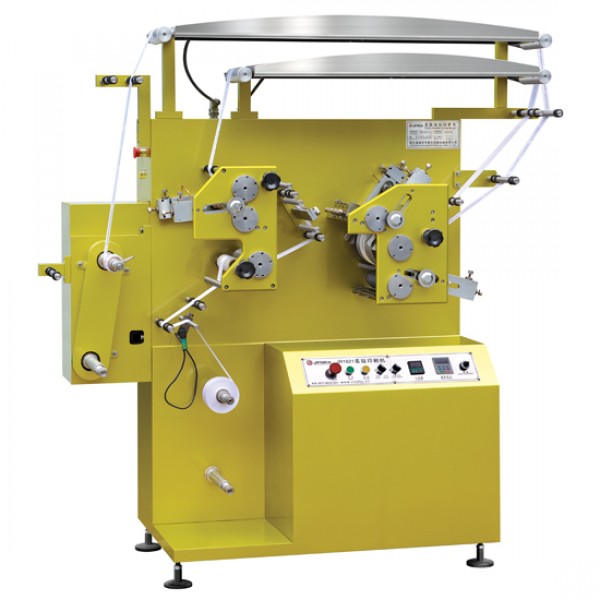

To accomplish the label image with strong washing fastness, we proudly present GF-4000 series Flexo Printing Machine. The printing mechanism of this series is that ink will be evenly spread-out on the ink-rollers at first, from the ink-rollers, the ink transfers to the printing cylinder, then, the flexo photopolymer plate will collect the ink and press directly on the surface of the materials, finally, the label will go through the drying process to complete the whole printing procedures. The printed label can reach the result of higher strong washing fastness by heating inside the H90 Automatic Temperature Controlled Oven between 3-8 hours. The outstanding characteristics of this series are: strong colorfastness to wash and polish, perfect colour registration, stability and reliability, simple in adjusting the printing length just by switching the different printing cylinders.
| 2 Colour | 3 Colour | 4 Colour | 5 Colour | 6 Colour | 37Colour | 8 Colour | |
| Single-sided Model | JR-1520 | ||||||
| Double-sided Model | JR-1521 | JR-1531 |
JR-1541 JR-1532 |
JR-1551 JR-1542 |
JR-1561 JR-1552 |
JR-1562 | |
| Max. Printing Length | 108 – 401mm (JR-1560 , JR-1561, JR-1562:300.8mm) | ||||||
| Max. Printing Width | 155mm | ||||||
| Max. Printing Speed | 60m/min | ||||||
| Available Materials | Stain tape , Nylon tape , cotton tape , Adhesive tape , and paper ect. | ||||||
| Power | AC：220V 50Hz/60Hz | ||||||
| Output | 4.7KW | 6.2KW | |||||
| Dimension (L x W x H )(mm） | 1100x650x1700 | 1600x700x1900 | 1800x700x900 | 1800x700x1900 | 2100x900x2000 | ||
| Net Weight | 700 kg | 750 kg | 770 kg | 1000 kg | 1200 kg | 1200 k | |
