In recent years, the market competition is turn white hot, many labels manufacturers can not improve their competition ability and been seesawing.
Since the change of market, our company took more than one year to develop and launch, the first 4 colors offset label printing machine in the world. Wherein the solutions, adopted the high printing dot and low-cost printing of PS plate, breakthrough the highly demand of labels that can’t be printed in the market, let the industry enter the new mileage, also applied for the invention and utility model two kinds of patent.

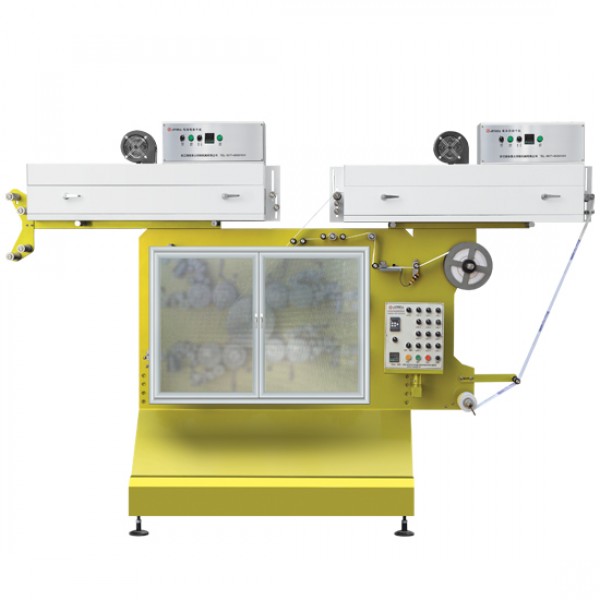

The machine features:
1.Adopt two ink one water inking unit, the ink- water balance ink can be achieved in a short time.
2.Unique install plates conformation, make fast and convenient to install the plates.
3.Central cylinder type design, reduce test-print materials.
4.Adopt automatic ink water feeding system.
5.Adopt PS plate, with high dot and clear, high revivification rate.
6.Printing 4 colors in front side, Or front print 3 colors reversal 1 color available, with clear and bright printing effect.
7.High-precision manufacturing and design plan, easy and simple to operate the machine.
The Invention patent No.:201410470108.7
The Utility model patent No.：201420530586.8
| printing station |
4 set（front side 4 colors，or front Side 3 colors，back side 1 color） |
| max. Material width | 115mm |
| max. Printing width | 110mm |
| unwinding diameter | 400mm |
| rewinding diameter | 400mm |
| printing length | 400mm |
| printing speed | 60m/min |
| using plate | PS plate |
| printing dot lines | 200line |
| dryer | 2 pcs |
| weight | 1100Kg |
| dimension | 3036*700*1920 |
| power rate | 220v 50/60hz 3.68KW |
